Automotive Antennas



419 NJ





Flat, broadband antenna elements with termination resistors and heatsinks for the NMHC 4MM Balun for efficient immunity testing at close distances in the frequency range below 220 MHz.



Required Balun:

NMHC 4MM

Connector:

N female

Frequency Range:

20 MHz ... 220 MHz

Nominal Impedance:

50

Continuous Power:

30 W

Max. Power (short time, 5 min):

40 W

VSWR:

typ. < 3 (f < 100 MHz)

Material: Aluminium
Weight: 250 g

Element length total:

LE = 240 mm
Element width: D = 109 mm
Element fixture: M4
Accessories: Spacer 50 mm



pdficon small Datasheet 419 NJ

Datasheet NMHC 4 MM







420 NJ

  • Schwarzbeck 420NJ


Elements for radiated immunity caused by hand portable transmitters

with SBA 9113 or SBA 9113 mini version for the Ford standard RI115 (Ford EMC CS 2009)



Required balun:

SBA 9113 or SBA 9113 Mini Version

Connector:

N

Frequency range:

370 MHz ... 2.7 GHz

Nominal impedance:

50

Maxumum input power:

20 W

VSWR:

< 6 (0.7 GHz < f < 1.8 GHz)
< 5 (1.8 GHz < f < 2.7 GHz)



Material:

Aluminium



Element size:

240 x 109 x 2 mm

Weight:

135 g

recomended space:

5 - 50 mm

Option:

Spacer 50 mm



Other Spacer on request

Datasheet 420 NJ

Datasheet SBA 9113



Option:

Opt: Spacer 50

Spacer made of Polystyrene to set the 420 NJ elements test distance to 50 mm.






422 NJ



  • Schwarzbeck 422NJ

The combination of  the flat elements 422 NJ with SBA 9119-Balun provides remarkable fieldstrength levels with moderate transmit power. With approx. 10 Watt transmit power one can reach fieldstrength levels of 300 V/m at a distance of 30 mm.



Required Balun:

SBA 9119

Connector:

N

Frequency Range:

800 MHz ... 6 GHz

Nominal Impedance:

50

Continuous Power:

20 W

VSWR:

< 8 (0.9 GHz < f < 2.4 GHz)
< 4 (2.4 GHz < f < 6 GHz)

   Material: Aluminium
   Flat Element Dimensions:

108 x 49 x 2 mm

Weight: 50 g

Recommended Spacing:

30 mm
Recommended mesh width: 30 - 50 mm
Options: Spacer 30 mm



pdficon small Datasheet 422 NJ

pdficon small Field Uniformity 422 NJ

Datasheet SBA 9119

pdficon small Assembly 422 NJ







TSA Antennas



  • Schwarzbeck TSA and SBA9113 with 420NJ




Tuned sleeve antennas are tuned half wave dipoles, with their axis aligned as a straight extension of the coaxial feed cable.



The main applications of the TSA-antennas are immunity testing against handheld transmitters in the automotive industry within the VHF/UHF range according to ISO 11542-9 respectively manufacturer specific standards (e.g. Toyota TSC 7006G).



Frequency Range: 385 MHz ... 2 GHz
Polarisation: linear
Pattern Type: omnidirektional
Permissible Power: 20 W
Connector: N
Impedance: 50 nominal
Length: 365 - 640 mm
Diameter: 25 mm
Weight: 300 g - 500 g
Mounting: 22 mm diameter tube

 pdficon small Datasheet TSA






NMHA 6M


  • Schwarzbeck NMHA 6M





Nissan and Renault antenna set to test immunity against handy transmitters acc. to Nissan specification 28401NDS02 [6] and RENAULT 36-00-808/L (combined set) consisting of normal mode helical antennas, counterpoise, SBA 9113 with 420NJ elements and transport case (see extra list)



Datasheet NMHA 6M







VW TL 82166 2009-05 7.3 Antenna Set


  • VW82166_2009_05_7_3A



The antenna kit for testing immunity against hand-held radios acc. to Volkswagen standard TL 82166:2009-05
consists of the following parts:

For the frequency range 26-174 MHz matched normal mode helical antennas are used. For frequencies from 360 MHz and beyond the broadband SBA 9113 mini version with 420 NJ elements is used.



pdficon small Datasheet VW TL 82166 2009-05 7.3 Antenna Set







NMHB 4MM - 1:1 Balun



NEW

  • NNHB_4MM


Low Loss Broadband Balun 1:1 with female N-Connector for receive and transmit applications in the VHF frequency range. The main application of the NMHB 4 MM is the immunity test against handheld transmitters according to ISO 11452-9 (Annex C.5) in the frequency range between 142 MHz and 246 MHz with different folded dipole elements FDAI. The radiating elements can be exchanged without any tools by the means of knurled M4 screws.





Usable Frequency Range: 9 kHz - 420 MHz
Nominal Impedance: 50 Ω
Standing Wave Ratio SWR typical: < 2
Max. Input Power: 50 W
Connector: N-female
Symmetrical Terminals: M4
Mount: 22 mm Tube
Length: 212 mm
Width: 75 mm
Height: 28 mm
Weight: 270 g
Recommended Accessories:

FDAI 146 (142-150 MHz)
FDAI 155 (151-161 MHz)
FDAI 165 (162-174 MHz)
FDAI 174 (172-180 MHz)
FDAI 222 (215-246 MHz)
FDAI Spacer 50
CCA FDAI



Datasheet NMHB 4MM

FDAI assambly instructions






FDAI 146 - Folded Dipole Antenna 146 MHz



NEW

  • FDAI_146
  • FDAI_146_with_NMHB_4MM


The FDAI 146 Radiating Elements are fed by the Low Loss Broadband Balun NMHB 4MM. The main application of the FDAI 146 is the immunity test against handheld transmitters according to ISO 11452-9 (Annex C.5) in the frequency range between 142 MHz and 150 MHz.Typical test distances are 5 cm between the EuT-surface and the FDAIsurface (Close Proximity Immunity Tests).





Usable Frequency Range: 142 - 150 MHz
Nominal Impedance: 50 Ω
Standing Wave Ratio SWR typical: < 2
Max. Input Power: 50 W
Symmetrical Terminals: M4
Length: 89 mm
Width: 240 mm
Height: 140 mm
Weight: 0.9 kg
Recommended Accessories:

NMHB 4MM
FDAI Spacer 50
CCA FDAI



Datasheet FDAI 146






FDAI 155 - Folded Dipole Antenna 155 MHz



NEW

  • FDAI_155
  • FDAI_155_with_NMHB_4MM


The FDAI 155 Radiating Elements are fed by the Low Loss Broadband Balun NMHB 4MM. The main application of the FDAI 155 is the immunity test against handheld transmitters according to ISO 11452-9 (Annex C.5) in the frequency range between 151 MHz and 160 MHz.Typical test distances are 5 cm between the EuT-surface and the FDAIsurface (Close Proximity Immunity Tests).





Usable Frequency Range: 151 - 160 MHz
Nominal Impedance: 50 Ω
Standing Wave Ratio SWR typical: < 2
Max. Input Power: 50 W
Symmetrical Terminals: M4
Length: 89 mm
Width: 240 mm
Height: 140 mm
Weight: 0.9 kg
Recommended Accessories:

NMHB 4MM
FDAI Spacer 50
CCA FDAI



Datasheet FDAI 155






FDAI 165 - Folded Dipole Antenna 165 MHz



NEW

  • FDAI_165
  • FDAI_165_with_NMHB_4MM


The FDAI 165 Radiating Elements are fed by the Low Loss Broadband Balun NMHB 4MM. The main application of the FDAI 165 is the immunity test against handheld transmitters according to ISO 11452-9 (Annex C.5) in the frequency range between 162 MHz and 174 MHz.Typical test distances are 5 cm between the EuT-surface and the FDAIsurface (Close Proximity Immunity Tests).





Usable Frequency Range: 162 - 174 MHz
Nominal Impedance: 50 Ω
Standing Wave Ratio SWR typical: < 2
Max. Input Power: 50 W
Symmetrical Terminals: M4
Length: 89 mm
Width: 240 mm
Height: 140 mm
Weight: 0.9 kg
Recommended Accessories:

NMHB 4MM
FDAI Spacer 50
CCA FDAI



Datasheet FDAI 165






FDAI 174 - Folded Dipole Antenna 174 MHz



NEW

  • FDAI_174
  • FDAI_174_with_NMHB_4MM


The FDAI 174 Radiating Elements are fed by the Low Loss Broadband Balun NMHB 4MM. The main application of the FDAI 174 is the immunity test against handheld transmitters according to ISO 11452-9 (Annex C.5) in the frequency range between 166 MHz and 180 MHz.Typical test distances are 5 cm between the EuT-surface and the FDAIsurface (Close Proximity Immunity Tests).





Usable Frequency Range: 166 - 180 MHz
Nominal Impedance: 50 Ω
Standing Wave Ratio SWR typical: < 2
Max. Input Power: 50 W
Symmetrical Terminals: M4
Length: 89 mm
Width: 240 mm
Height: 140 mm
Weight: 0.9 kg
Recommended Accessories:

NMHB 4MM
FDAI Spacer 50
CCA FDAI



Datasheet FDAI 174






FDAI 222 - Folded Dipole Antenna 222 MHz



NEW

  • FDAI_222
  • FDAI_222_with_NMHB_4MM


The FDAI 222 Radiating Elements are fed by the Low Loss Broadband Balun NMHB 4MM. The main application of the FDAI 222 is the immunity test against handheld transmitters according to ISO 11452-9 (Annex C.5) in the frequency range between 215 MHz and 246 MHz.Typical test distances are 5 cm between the EuT-surface and the FDAIsurface (Close Proximity Immunity Tests).





Usable Frequency Range: 215 - 246 MHz
Nominal Impedance: 50 Ω
Standing Wave Ratio SWR typical: < 2
Max. Input Power: 50 W
Symmetrical Terminals: M4
Length: 89 mm
Width: 240 mm
Height: 140 mm
Weight: 0.9 kg
Recommended Accessories:

NMHB 4MM
FDAI Spacer 50
CCA FDAI



Datasheet FDAI 222






HLC 27



  • HLC 27



The HLC 27 is a compact dipole antenna for automotive immunity testing, embedded in a plastic housing.


Frequency Range: 26.96...27.4 MHz
Polarisation: linear
Pattern Type: omnidirectional
Permissible Power: 50 W
Connector: Type BNC female
Impedance: 50 Ohms nominal
Length: 80 mm
Width: 80 mm
Hight: 145 mm
Weight: 585 g
Mounting:

22 mm diameter tube, L = 30 mm

3/8"



pdficon small Datasheet HLC 27






HLC 146



  • HLC146


The antenna HLC 146 is a monopole antenna located in a PVC-housing for automotive immunity testing on component level. This antenna type is proposed in the standard ISO 11452-9.



The antenna construction stems from IETR Institute d'Electronique et de Telecommunications de Rennes.



Frequency Range: 144...148 MHz
Polarisation: linear
Pattern Type: omnidirectional
Permissible Power: 50 W
Connector: Type BNC female
Impedance: 50 Ohms nominal
Length: 80 mm
Width: 80 mm
Hight: 145 mm
Weight: 310 g
Mounting:

22 mm diameter tube, L = 30 mm

3/8"


 pdficon small Datasheet HLC 146






HLC 170



  • HLC170


The antenna HLC 170 is a monopole antenna located in a PVC-housing for automotive immunity testing on component level. This antenna type is proposed in the standard ISO 11452-9.



The antenna construction stems from IETR Institute d'Electronique et de Telecommunica- tions de Rennes. It was modified for ISO 11452-9.



Frequency Range: 169.8...173 MHz
Polarisation: linear
Pattern Type: omnidirectional
Permissible Power: 50 W
Connector: Type BNC female
Impedance: 50 Ohms nominal
Length: 80 mm
Width: 80 mm
Hight: 145 mm
Weight: 310 g
Mounting:

22 mm diameter tube, L = 30 mm

3/8"


 pdficon small Datasheet HLC 170






FAN 405



  • FAN405


The antenna FAN 405 is a monopole antenna located in a PVC-housing for automotive immunity testing on component level. This antenna type is proposed in the standard ISO 11452-9.



The antenna construction stems from IETR Institute d'Electronique et de Telecommunications de Rennes.



Frequency Range: 380...430 MHz
Polarisation: linear
Pattern Type: omnidirectional
Permissible Power: 50 W
Connector: Type BNC female
Impedance: 50 Ohms nominal
Length: 80 mm
Width: 80 mm
Hight: 145 mm
Weight: 310 g
Mounting:

22 mm diameter tube, L = 30 mm

3/8"



pdficon small Datasheet FAN 405






FAN 450



  • FAN450



The antenna FAN 450 is a monopole antenna located in a PVC-housing for automotive immunity testing on component level. This antenna type is proposed in the standard ISO 11452-9.



The antenna construction stems from IETR Institute d'Electronique et de Telecommunications de Rennes.



Frequency Range: 430...470 MHz
Polarisation: linear
Pattern Type: omnidirectional
Permissible Power: 50 W
Connector: Type BNC female
Impedance: 50 Ohms nominal
Length: 80 mm
Width: 80 mm
Hight: 145 mm
Weight: 310 g
Mounting:

22 mm diameter tube, L = 30 mm

3/8"



pdficon small Datasheet FAN 450






EGG 900



  • EGG900


The antenna EGG 900 is a monopole antenna located in a PVC-housing for automotive immunity testing on component level. This antenna type is proposed in the standard ISO 11452-9.



The antenna construction stems from IETR Institute d'Electronique et de Telecommunications de Rennes.



Frequency Range: 890...915 MHz
Polarisation: linear
Pattern Type: omnidirectional
Permissible Power: 50 W
Connector: Type SMA female
Impedance: 50 Ohms nominal
Length: 80 mm
Width: 80 mm
Hight: 150 mm
Weight: 300 g
Mounting:

22 mm diameter tube, L = 30 mm

3/8"



pdficon small Datasheet EGG 900






EGG 1860



  • EGG1860


The antenna EGG 1860 is a monopole antenna located in a PVC-housing for automotive immunity testing on component level. This antenna type is proposed in the standard ISO 11452-9.



The antenna construction stems from IETR Institute d'Electronique et de Telecommunications de Rennes.



Frequency Range: 1710...2025 MHz
Polarisation: linear
Pattern Type: omnidirectional
Permissible Power: 50 W
Connector: Type SMA female
Impedance: 50 Ohms nominal
Length: 80 mm
Width: 80 mm
Hight: 85 mm
Weight: 300 g
Mounting:

22 mm diameter tube, L = 30 mm

3/8"


pdficon small Datasheet EGG 1860






PCD 2440



  • PCD2440


The antenna PCD 2440 is a monopole antenna located in a PVC-housing for automotive immunity testing on component level.



Frequency Range: 2402...2480 MHz
Polarisation: linear
Pattern Type: omnidirectional
Permissible Power: 50 W
Connector: Type SMA female
Impedance: 50 Ohms nominal
Length: 80 mm
Width: 80 mm
Hight: 85 mm
Weight: 310 g
Mounting:

22 mm diameter tube, L = 30 mm

3/8"


pdficon small Datasheet PCD 2440






WAND 0918



Wireless Immunity -Wand- Antenna acc. to Dell Specification -SYSTEM IMMUNITY TO WIRELESS GSM TEST REQUIREMENT.

Linear polarised handheld dipole with omnidirectional H-plane pattern for immunity tests agianst electromagnetic waves in the GSM frequency bands.



Frequency Range: 800 MHz - 2 GHz
Polarisation: linear
Pattern Type: omnidirectional
Max Power: 20 W
Connector: SMA
Impedance: 50 Ohm nominell
Length: 260 mm
Diameter: 20 mm
Weight: 145 g



pdficon small Datasheet WAND0918

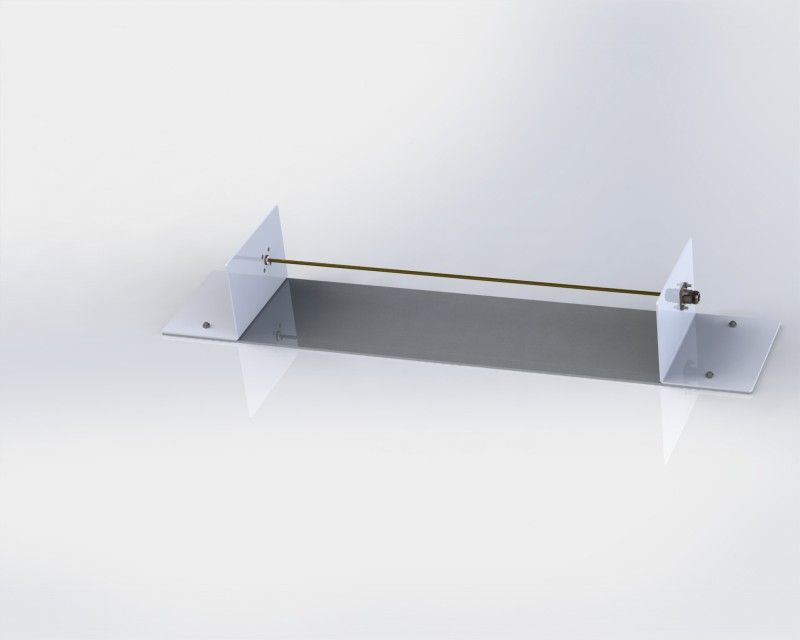

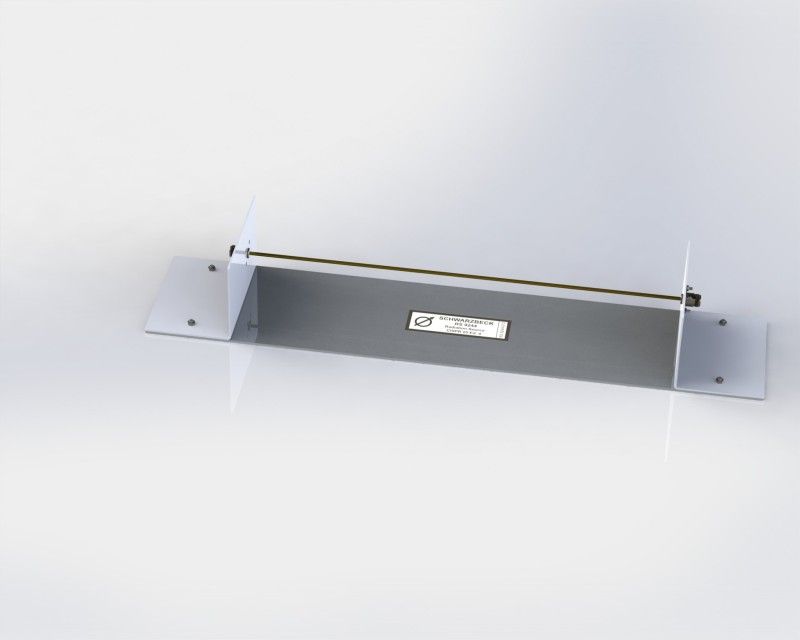

RS 9244

  • Schwarzbeck RS 9244
  • Schwarzbeck RS9244



The radiation source RS 9244 complies to CISPR 25 Edition 4, which proposes the "Long Wire Antenna" and is used as reference source to evaluate the suitability of absorber lined shielded enclosures (ALSE) according to the 'Long Wire Antenna method'.



pdficon small Datasheet RS9244




VAMP 9243


  • Schwarzbeck VAMP9243 Vertikal Active Rod Antenna
  • Schwarzbeck Option MIL461_bonding_kit for VAMP 9243


The VAMP 9243 is a vertikal active rod antenna with reduced noise floor.



Frequency Range: 9 kHz - 30 MHz
Polarisation: linear
Pattern Type: omnidirektional
Connector: BNC
Impedance: 50 Ohm nominell
Dimensions Amplifier:
Length: 180 mm
Width: 80 mm
Hight: 40 mm
Length Rod: 1 m
Weight: 900 g
Mounting:

1/4", 3/8"



With mounting nut for AM 9144 and rechargeable battery



pdficon small Datasheet VAMP 9243



Options:

Opt. GP: Aluminium-Groundplane, 0.6 x 0.6 m



Opt. ACS 410: Charger ACS 410

Opt. VT: 20 dB plug in divider to measure high field strength
[picture]



Opt. CA 9243: Calibration Adapter for VAMP 9243



pdficon small Opt. CA 9243



Opt. MIL461F bonding kit:

Bonding kit for VAMP 9243 acc. MIL-STD-461F consisting of a BNC

cable double shielded ca. 70 cm, with braid

current blocking ferrite in the center, elbow aluminium angle

with BNC bulkhead adapter.


 pdficon small Opt. MIL 461F Bonding Kit






VPMP 9241


  • Schwarzbeck VPMP 9241
  • Schwarzbeck VPMP9241


The vertical passive monopole consists of a flat alumium base plate and a milled aluminium housing, which has two N-connectors at the sides and an element clamping fixture on top. The element clamping fixture with a nominal diameter of 10 mm accepts the vertical rod of 0.5 m length, which is included in standard delivery. A typical application is the validation of ALSE (Absorber lined shielded enclosure) as proposed by CISPR 25 Ed. 4. An optional top loading disc (TLD 9241) is also available. Instead of the 0.5 m rod nearly all element types of the Schwarzbeck product range can be used, e.g. biconical elements BBA 9106, BBAL 9136, BBAK 9137, BBVK 9138, or collapsible elements FBAL 9177, FBAB 9178, or the telescopic elements of the VHA 9103.



Monopol acc. CISPR/D/391/CD (CIS/D/386/CD, CIS/D/388A/CC)



Frequency Range: DC - 300 MHz
Polarisation: linear
Pattern Type: omnidirectional
Permissible Power: 2 kW
Connector: 2 x N
Impedance: 50 Ohm nominell

Dimensions base plate:

300 x 300 mm

Housing dimensions:

80 x 80 x 35 mm

Length Rod:

0.5 m
Weight: 0.9 kg



pdficon small Datasheet VPMP 9241



Option:

Opt. TLD 9241:

Top loading disc for VPMP 9241

diameter < 12 cm.






Beehive-Electronics 100 Series EMC Probes


The EMC probe 100 series consists of three loop probes for magnetic fields and one stub probe for electric field.

Loop probes: 100A, 100B and 100C

Stub probes: 100D



pdficon small Datasheet 100 Series EMC Probes
