Antenna Holders / Baluns

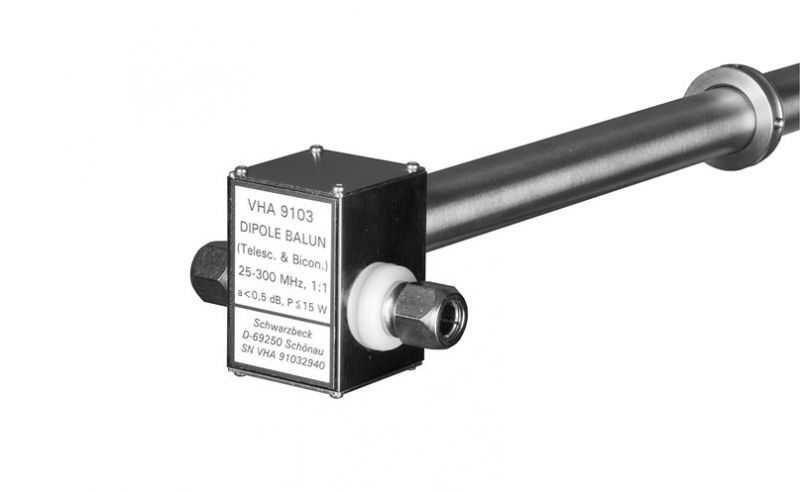

  • Schwarzbeck VHA 9103 Dipole Balun

 VHA 9103 B



Holder / Balun without telescopic dipole elements

(for use with Biconical BBA 9106, BBAL 9136,

BBAK 9137, BBVK 9138, FBAB 9177)

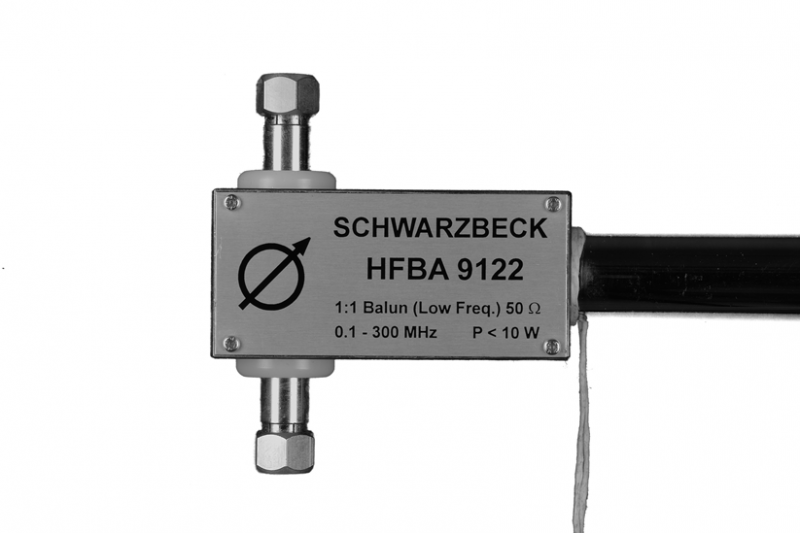

  • Schwarzbeck HFBA 9122 Antenna Holder - Balun



HFBA 9122



HF-VHF Broadband balun / holder

(0.1) 0.15 - 300 (500) MHz

especially to measure very high field strength

for use with BBAL 9136, BBA 9106, BBAK 9137, BBVK 9138

BBVU 9135 or BBUK 9139 biconical elements required



pdficon small Datasheet HFBA 9122

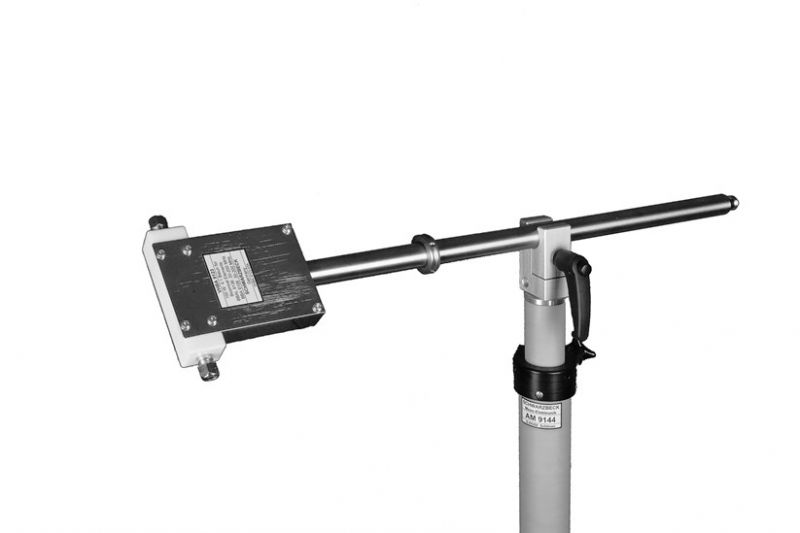

  • Schwarzbeck VHBA 9123



VHBA 9123



Antenna Holder / Balun for Bicon Broad Band Antenna

(e.g. BBA 9106, BBAL 9136, BBAK 9137, FBAL 9178)

50 / 200 Ohm

better antenna factor below 50 MHz,

also EMV application 100 W

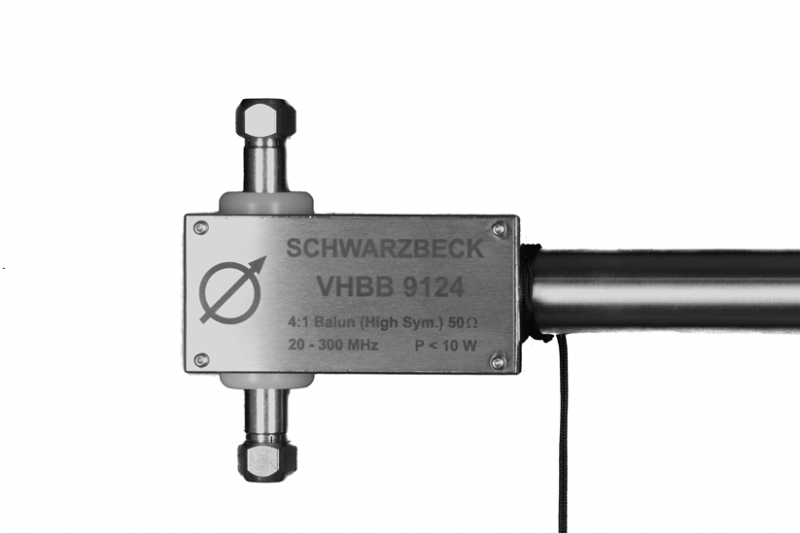

  • Schwarzbeck VHBB 9124



VHBB 9124



Antenna Holder / Balun for Bicon. Broad Band Antenna

50:200 Ohm

(better antenna factor for lower frequency end)

for use with BBA 9106, BBAL 9136, BBAK 9137,

BBVK 9138, FBAB 9177, FBAL 9178



Datasheet VHBB 9124

VSWR

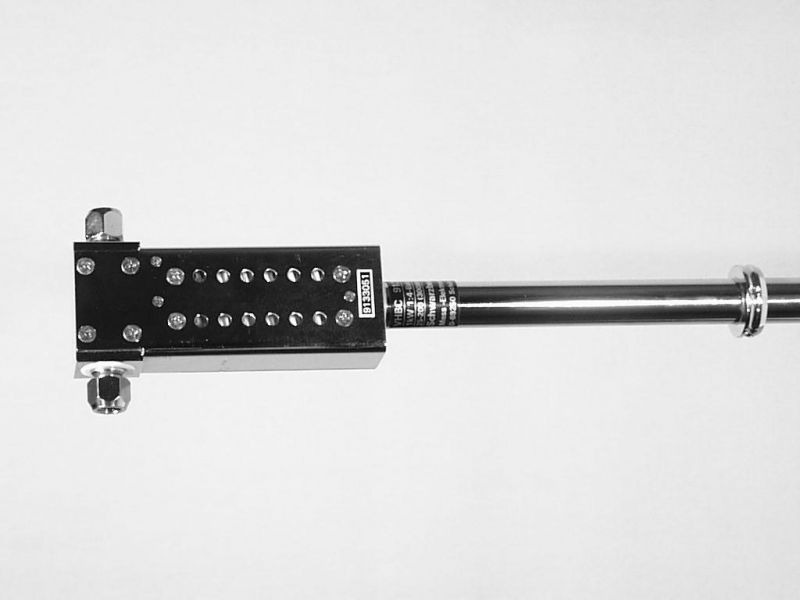

  • Schwarzbeck VHBC9133



VHBC 9133



Antenna holder / balun

50:200 Ohm

1 kW

for biconical or collapsible elements (BBA 9106,

BBAL 9136, BBFA 9146, FBAB 9177, FBAL 9178,

BBAE 9179)



Datasheet VHBC 9133

pdficon small Fieldstrength VHBC9133 + BBA9106

pdficon small VSWR

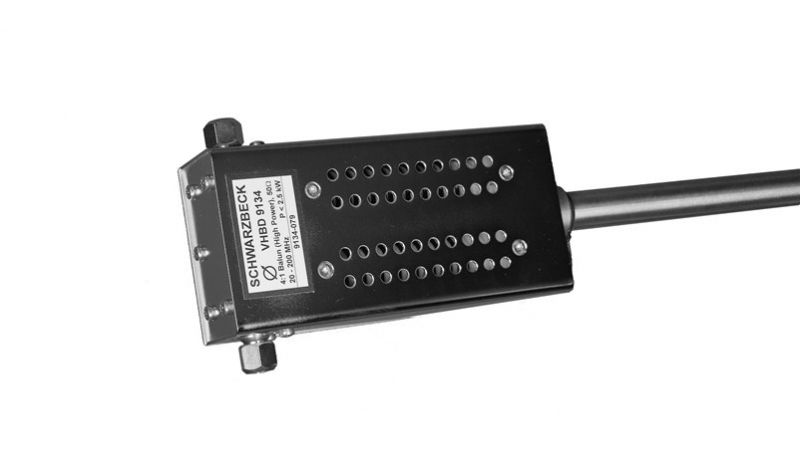

  • Schwarzbeck VHBD 9134



VHBD 9134



High power antenna holder / balun

for biconical or collapsible elements BBFA 9146

50:200 Ohm

20-200 MHz

2.5 kW

N-connector

Option 7/16: 7/16 connector



Datasheet VHBD 9134

VSWR

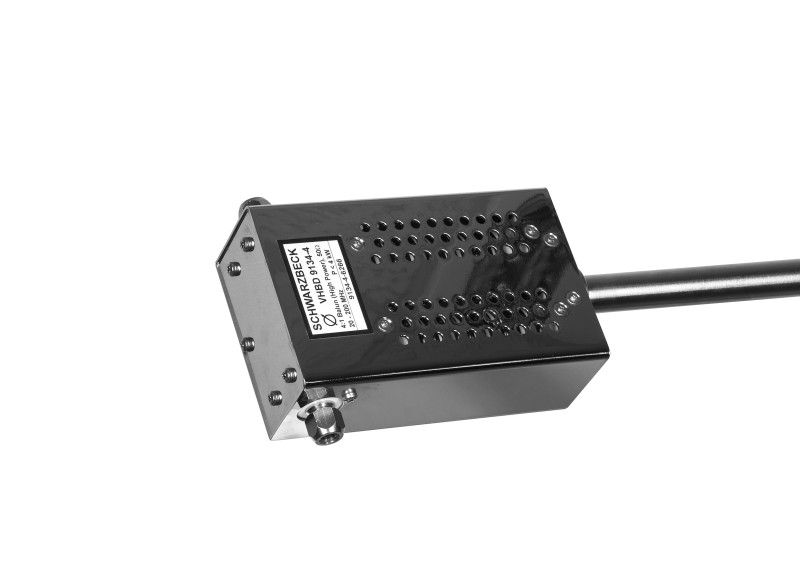

  • Schwarzbeck VHBD 9134-4



VHBD 9134-4



high power antenna holder / balun

for BBAL 9136 or BBFA 9146

50:200 Ohm

20-200 MHz

4 kW

7/16-female connector



Datasheet VHBD 9134-4




NEW

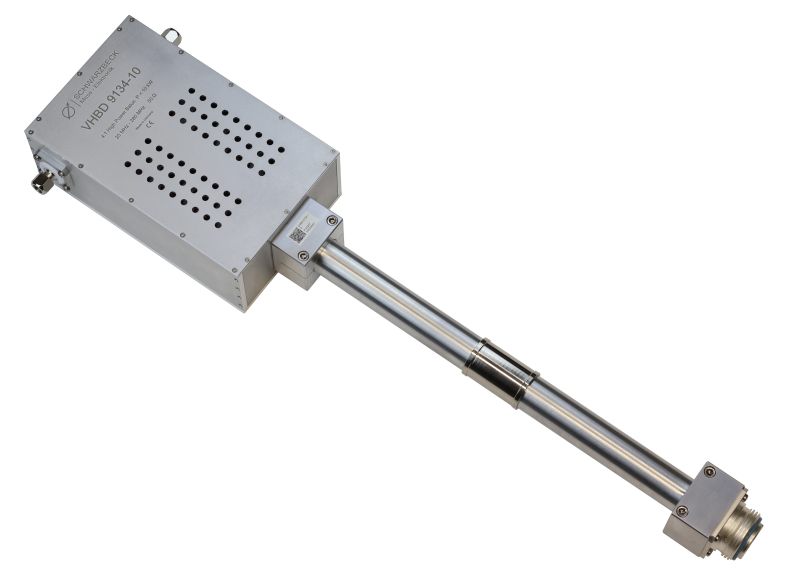

  • VHBD 9134-10



VHBD 9134-10



High Power Antenna Holder / Balun

for TRI 0630, BBA 9106, BBAL 9136 or BBFA 9146

50:200 Ohm

20-280 MHz

10 kW

13/30-female connector



Datasheet VHBD 9134-10

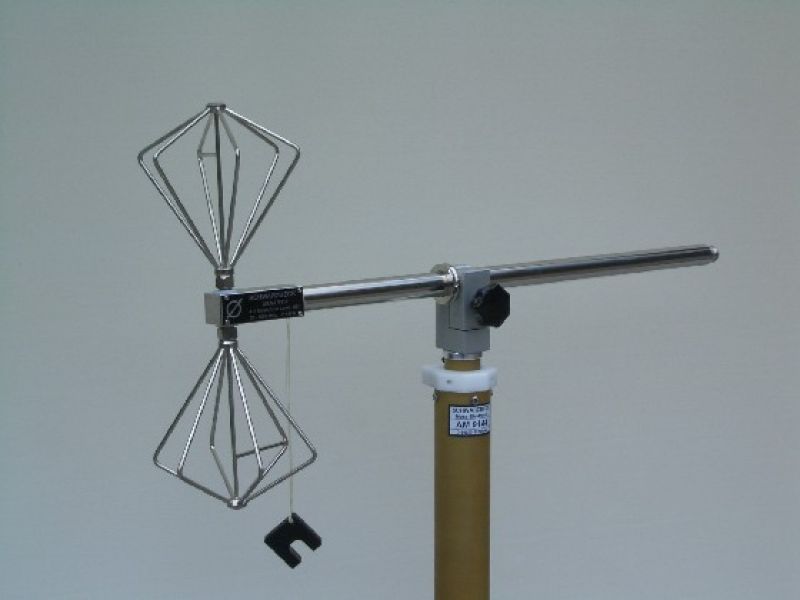

  • Schwarzbeck UBAA 9114 Broadband Balun_Holder with BBUK 9139 Biconical Elements



UBAA 9114



Broadband Balun/Holder

4:1

30-1000 MHz

5 W

low loss

BBVU 9135, BBUK 9139, BAOC 9216

or BBOC 9217 elem. required



Datasheet UBAA 9114

VSWR

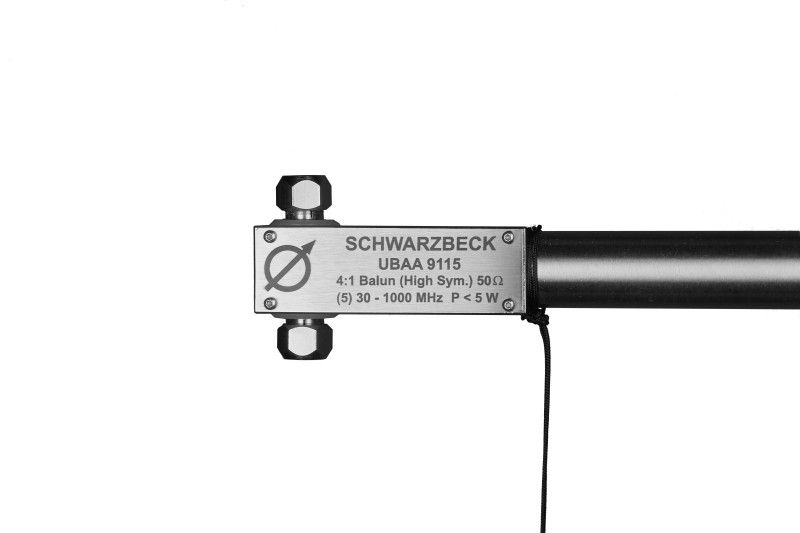

  • Schwarzbeck UBAA 9115



UBAA 9115



Broadband Balun/Holder

4:1

30-1000 MHz

5 W

extremely high symmetry

BBVU 9135, BBUK 9139, BAOC 9216

or BBOC 9217 elem. Required



Datasheet UBAA 9115

VSWR
