Near Field Probes

  • Schwarzbeck FS-SET 7100

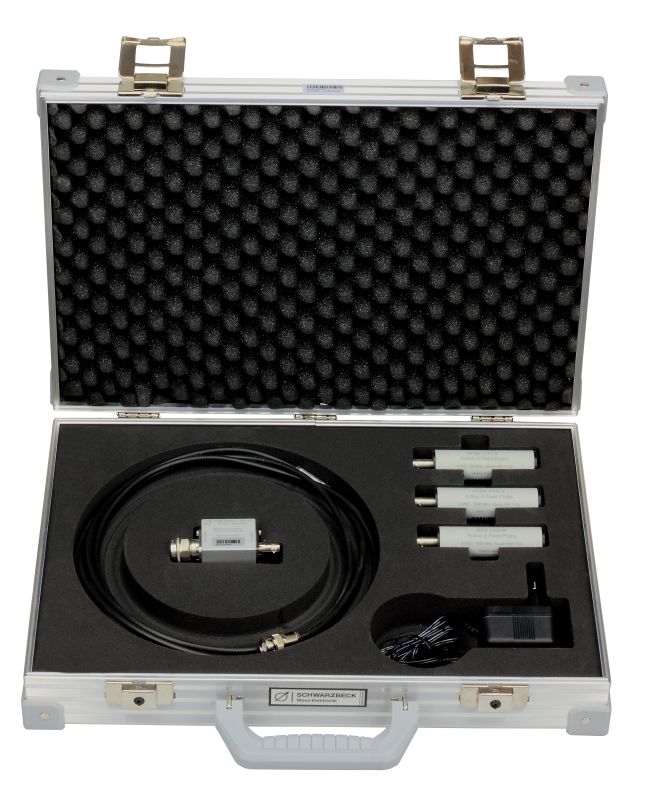

FS-SET 7100



Nearfield Probe Set including

HFSL 7101 Active Near Field Probe (magnetic), 9 kHz - 30 MHz

HFSH 7102 Active Near Field Probe (magnetic), 4 MHz - 1000 MHz

EFS 7103 Active Near Field Probe (electric), 9 kHz - 1000 MHz

and Separator EW 7110 and AC/DC adaptor ACDC 7110 in storing case



pdficon small Datasheet FS-SET 7100




  • Schwarzbeck HFSL7101 Active H-Field-Probe

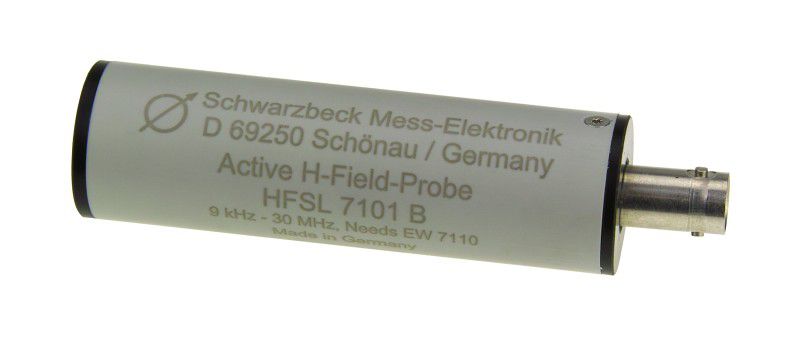

HFSL 7101



Active Near Field Probe (magnetic),

9 kHz - 30 MHz

(EW 7110 and ACDC 7110 required)



pdficon small Datasheet HFSL 7101







  • Schwarzbeck HFSH 7102 Active H-Field-Probe

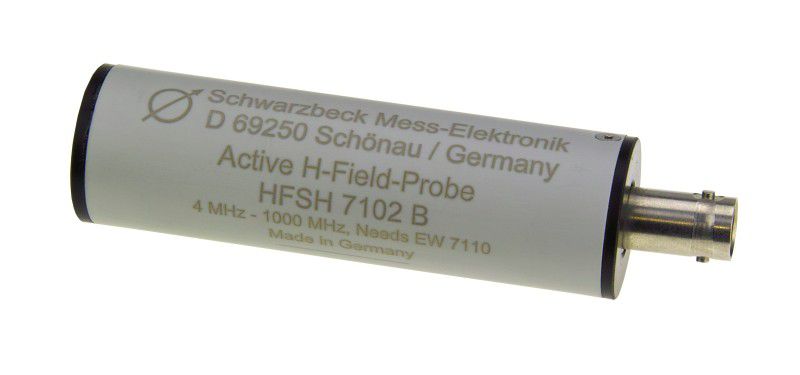

HFSH 7102



Active Near Field Probe (magnetic),

4 MHz - 1000 MHz

(EW 7110 and ACDC 7110 required)



pdficon small Datasheet HFSH 7102






  • Schwarzbeck EFS 7103 Active E-Field-Probe

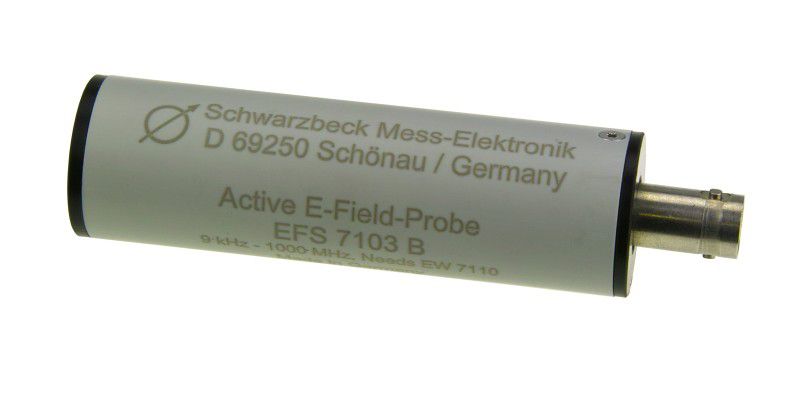

EFS 7103



Active Near Field Probe (electric)

9 kHz - 1000 MHz

(EW 7110 and ACDC 7110 required)



pdficon small Datasheet EFS 7103






  • EW 7110 - RF_DC-Separator

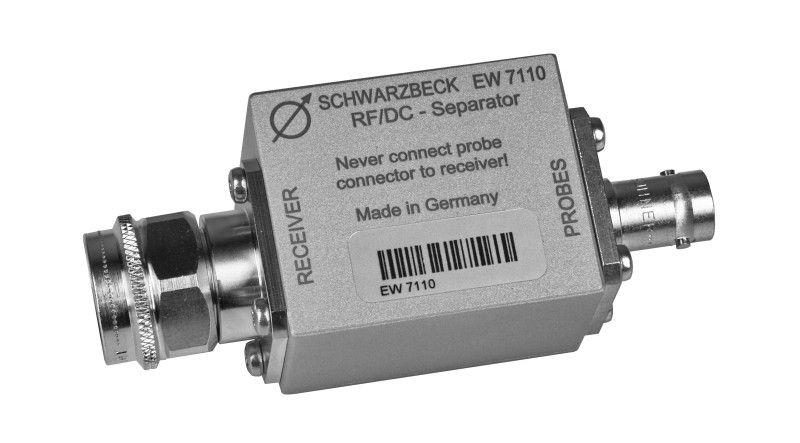

EW 7110



The DC-Separator EW 7110 is used for powering the Probes HFSL 7101, HFSH 7102 and EFS 7103.
The DC-Separator and the named Probes are available in a practical case in FS-SET 7100.
The power adapter ACDC 7110 is required for operation.



pdficon small Datasheet EW 7110





ACDC 7110



AC/DC Adapter for DC-Seperator EW 7110
