CDNE for emission measurement on luminaries acc. EN 55015

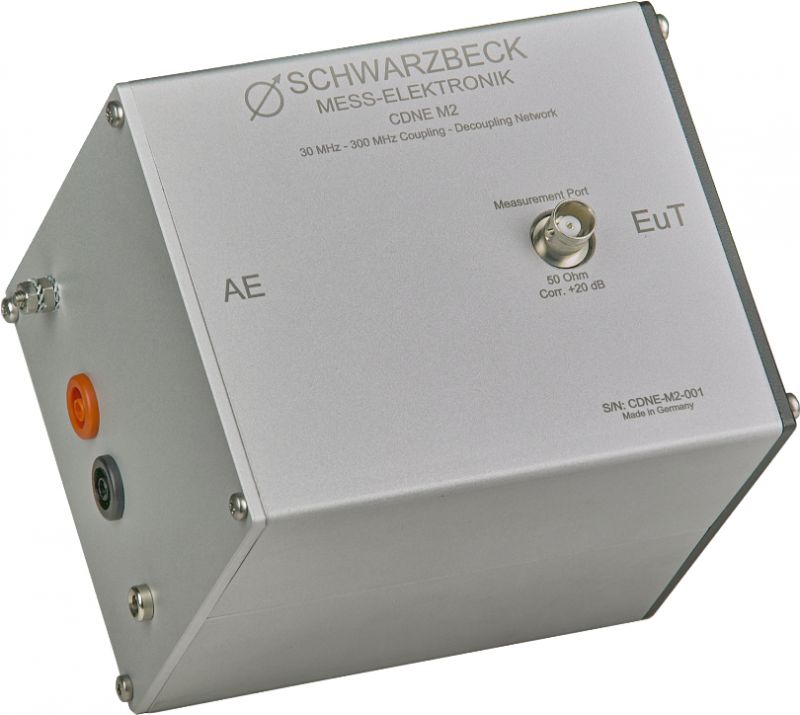

  • Schwarzbeck CDNE M2 30 MHz - 300 MHz Coupling - Decoupling Network



CDNE M2



CDNE with tight tolerances for CISPR 15 emission measurements

with 2 mains conductors can also be used as CDNE AF2.



pdficon small Datasheet CDNE M2

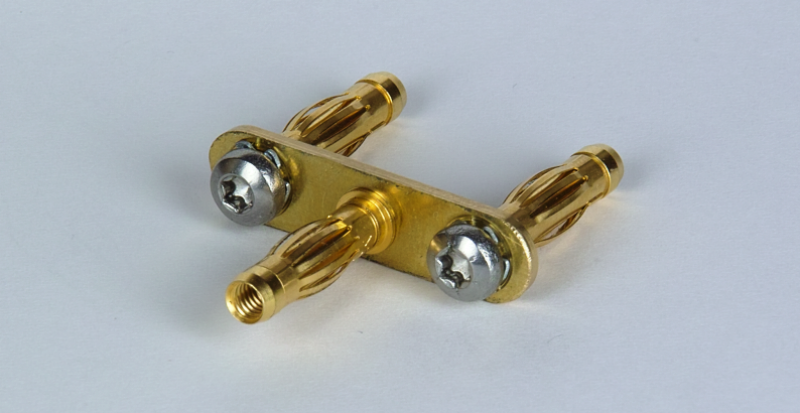

  • Schwarzbeck CA CDNE M2 Part A



CA CDNE M2 Part A



Part A of the calibration

or short adapter for CDNE M2

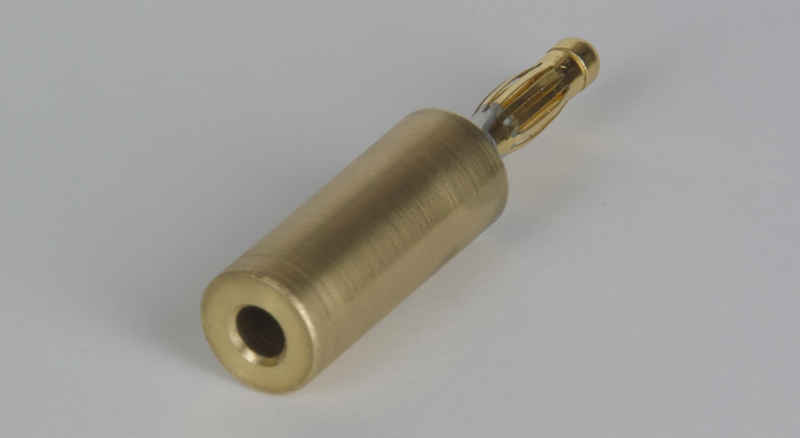

  • Schwarzbeck CA CDNE Part B



CA CDNE Part B



Part B of the calibration

or short adapter for CDNE M2 or M3






  • Schwarzbeck SR100_6W



SR100-6W



The SR100-6W is an adapter for the calibration of a CDN (e.g. ISN S1, ISN S8) or a CDNE. Therefore it matches the 50 Ω measurement port to the 150 Ω system.

A low inductance resistor of 100 Ω is connected between the inner conductor of the N connector and the 4 mm banana jack. The construction is according to the picture 7 of the standard EN 61000-4-6.





Frequency Range:

 DC ... 500 MHz

Max. Power:

 6 W

Line Resistance:

 100 Ω

Output:

 4 mm Buchse

Insertion Loss
2xSR100-6W
in series:

 9.5 dB +/- 0.5 dB

Input Connector:

BNC 50

Weight:

 340 g

Dimensions W x H x D:

 105 mm x 64 mm x 70 mm

Reference Plane:

 100 mm x 100 mm x 3 mm

Grounding:

 Case bottom



According to the Standards:

 EN 61000-4-6
 EN 55015
 CISPR 15
 CISPR 16-1-x
 CISPR 16-2-x



pdficon small Datasheet SR100-6W

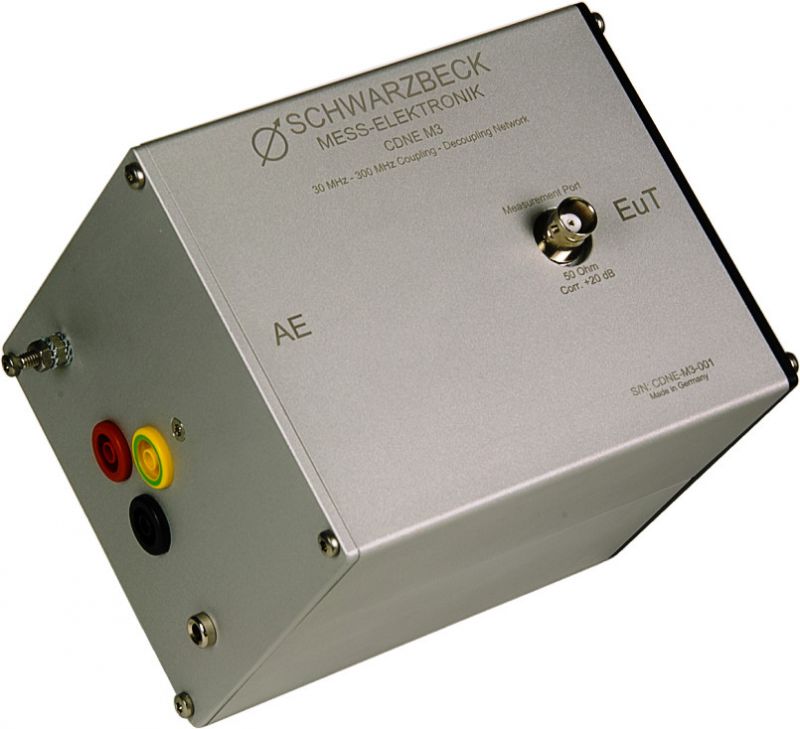

  • Schwarzbeck CDNE M3 - 30 MHz - 300 MHz Coupling - Decoupling Network



CDNE M3



CDNE with tight tolerances

for CISPR 15 emission measurements

with 3 mains conductors.



pdficon small Datasheet CDNE M3

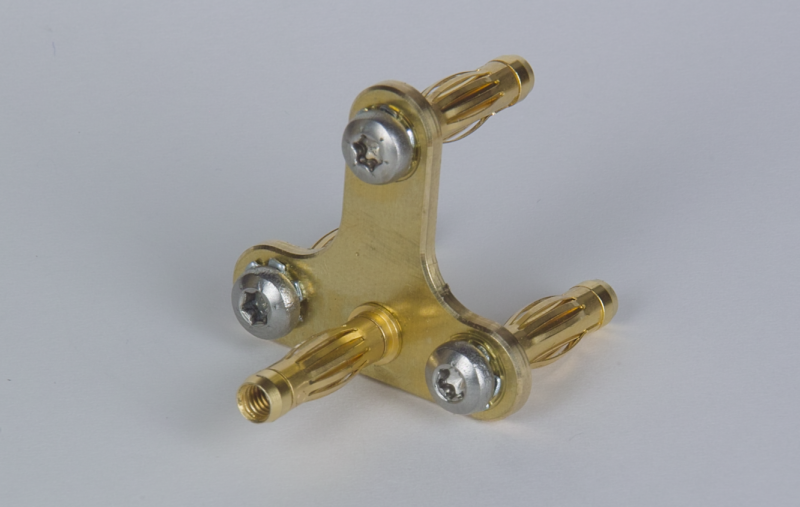

  • Schwarzbeck CA CDNE M3 Part A



CA CDNE M3 Part A



Calibration or

short adapter for CDNE M3 part A.
