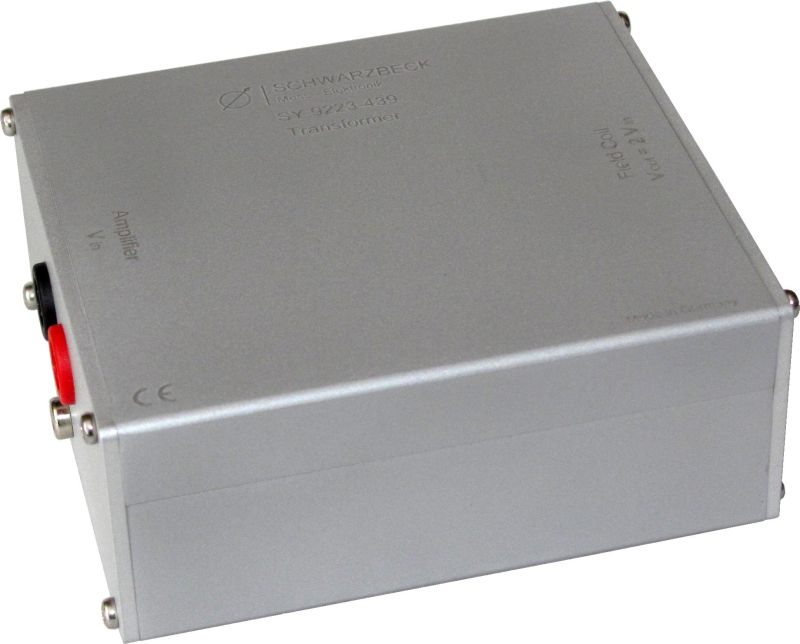

Baluns

  • SY9223-439



SY 9223-439

The SY 9223-439 transformer causes a voltage transformation Uin / Uout = 1 / 2 and is designed for operation with hand- held field coil – e.g. FESP 5132 when performing tests according to IEC 61000-4-39. For this purpose, the field coil must be excited with the signal voltage of over 60 Vrms at 134 kHz to reach the field strength of 65 A/m. Other applications in the frequency range up to 1... 3 MHz are possible.



Frequency Range:  30 kHz - 1 MHz
Connectors:  4 mm safety laboratory jacks
Max. input current:  2 Arms
Inductance of primary winding at 100 kHz:  typ. 1.1 mH
Erdung:  4 mm socket
Dimensions:  130 x 105 x 51 mm
Housing material:  Aluminium
Housing dimensions:  17.5 x 58 x 90 mm
Weight:  500 g





pdficon small Datasheet SY9223-439










  • SY9223_Profibus

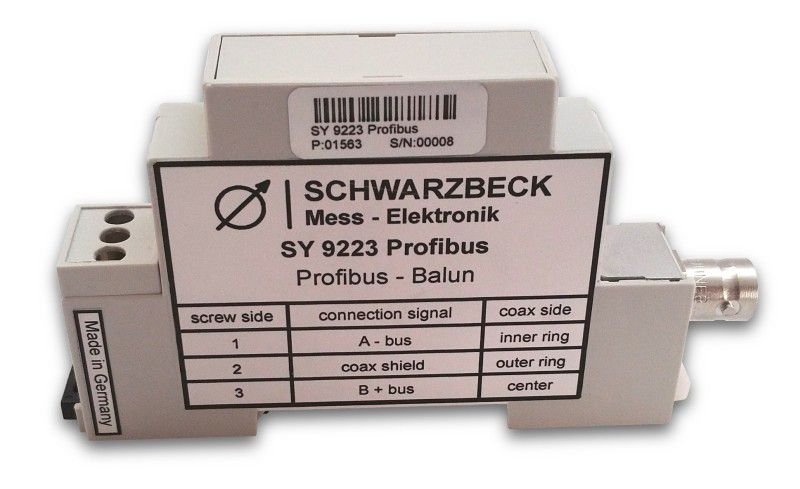

SY 9223 Profibus

The SY 9223 Profibus balun adapts a symmetrical signal to a coaxial line. Usually twisted pairs with an impedance of approx. 120 Ω are used to transmit the Profibus signals. The SY 9223 Profibus can be applied to use an existing triaxial wiring.





Frequency Range:  DC ->20 MHz
Nominal Impedance:  120 Ω -> 50 Ω
Dielectric strength:  ≥100 V
Max. current per conductor:  500 mA
Coaxial connector:  BNT-50-0-1
Symmetrical connector:  Screw terminal
Housing material:  polycarbonate
Housing dimensions:  17.5 x 58 x 90 mm
Fastening:  DIN support rail 35 mm
Weight:  53 g



pdficon small Datasheet SY9223 Profibus










  • SY9223-7637-4_Balun

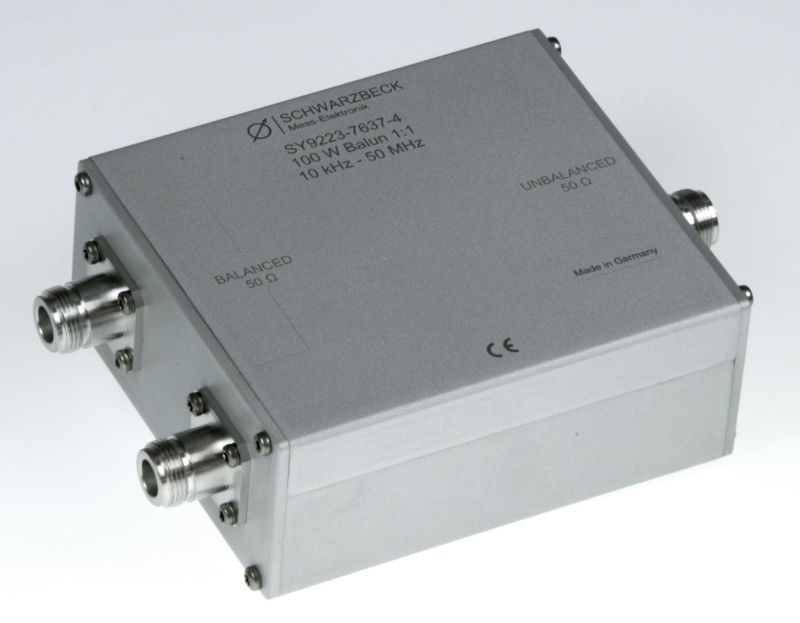

SY 9223-7637-4



The SY 9223-7637-4 is a balanced-to-unbalanced transformer (abbr. balun) - transforming an unsymmetrical RF signal into a symmetrical one while not transforming the impedance. A bidirectional direction of operation is possible. The SY 9223-7637-4 has a low insertion loss, a wide range of bandwidth and can dissipate a big amount of power.





Frequency range:  9 kHz ... 50 MHz
Nominal impedanz:  50 Ω nominal
Continuouse power dissipation:  100 W
Impedance ratio:  1:1
Return loss:  typ. >15 dB @ 30 Mhz
Insertion loss:  typ. <0.3 dB @ 30 MHz
Amplitude unbalance:  <0.5 dB
Connector symmetric:  2x N-connector, 50 Ω between the two inner conductors
Connector unsymmetric:  N-connector, 50 Ω
Length:  160 mm
Width:  105 mm
Height:  50 mm
Weight:  ca. 0.5 kg



pdficon small Datasheet SY9223-7637-4







  • SY9223-100

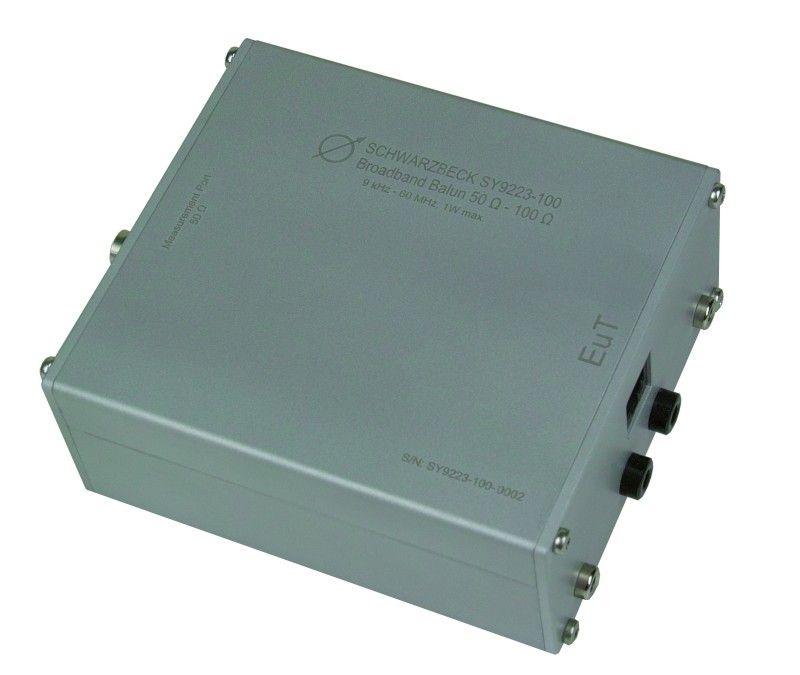

SY 9223-100



Balun unsymm. 50 Ohm to symm. 100 Ohm

Input impedance: 50 Ohm unsymmetrical

Input connector: BNC

Output impedance: 100 Ohm symmetrical

Output connectors: RJ45 Pin 4+5 and 4 mm banana female

Frequency range: 9 kHz - 60 MHz



pdficon small Datasheet SY9223-100

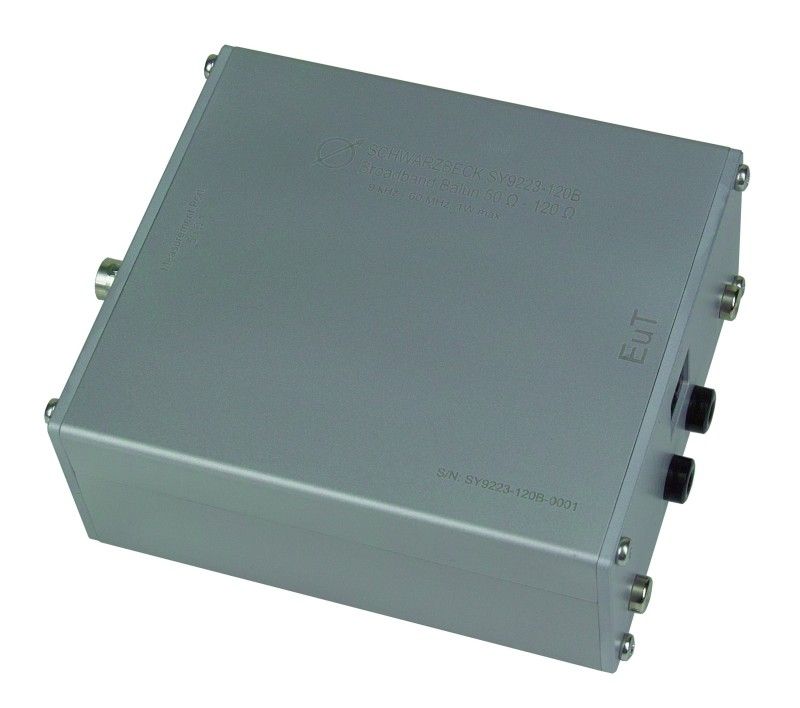

  • SY9223-120B



SY 9223-120B



Balun unsymm. 50 Ohm to symm. 120 Ohm

Input impedance: 50 Ohm unsymmetrical

Input connector: BNC

Output impedance: 120 Ohm symmetrical

Output connectors: RJ45 Pin 4+5 and 4 mm banana female

Frequency range: 9 kHz - 60 MHz



pdficon small Datasheet SY9223-120B

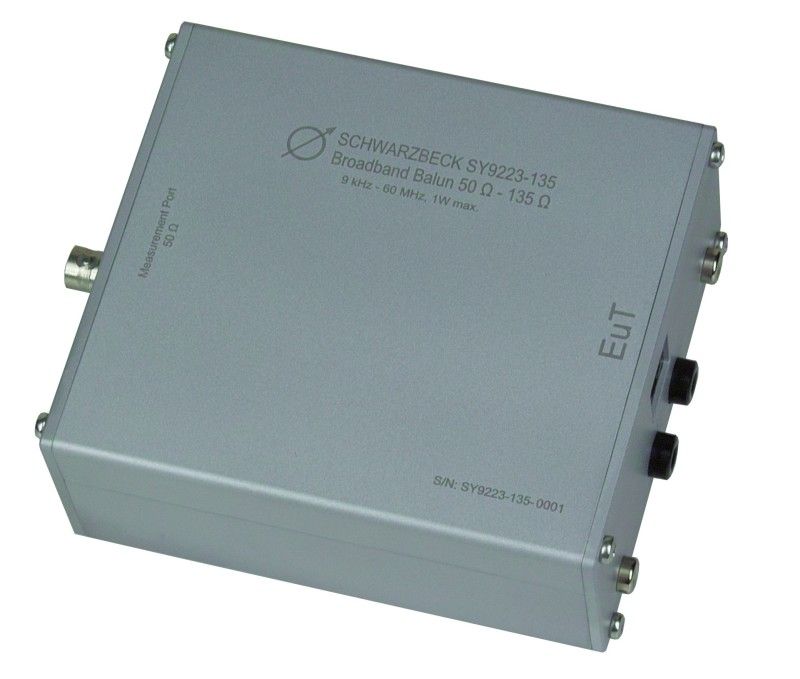

  • SY9223-135



SY 9223-135



Balun unsymm. 50 Ohm to symm. 135 Ohm

Input impedance: 50 Ohm unsymmetrical

Input connector: BNC

Output impedance: 135 Ohm symmetrical

Output connectors: RJ45 Pin 4+5 and 4 mm banana female

Frequency range: 9 kHz - 60 MHz



pdficon small Datasheet SY9223-135

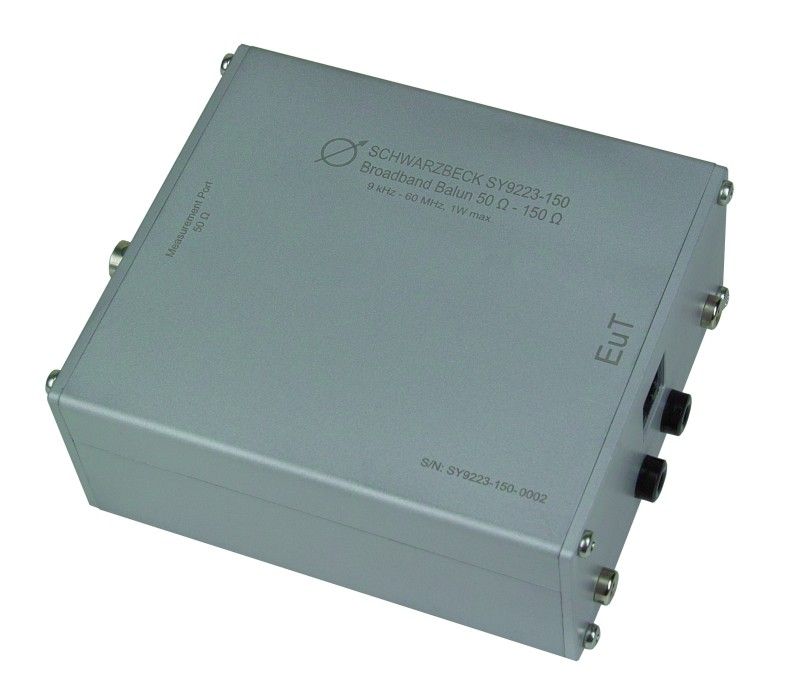

  • SY9223-150



SY 9223-150



Balun unsymm. 50 Ohm to symm. 150 Ohm

Input impedance: 50 Ohm unsymmetrical

Input connector: BNC

Output impedance: 150 Ohm symmetrical

Output connectors: RJ45 Pin 4+5 and 4 mm banana female

Frequency range: 9 kHz - 60 MHz



pdficon small Datasheet SY9223-150



  • Schwarzbeck SY 9501




SY 9501



Balun unsymm. 50 Ohm to symm. 150 Ohm

EN 55015

CISPR 15
[Picture]



pdficon small Datasheet SY 9501

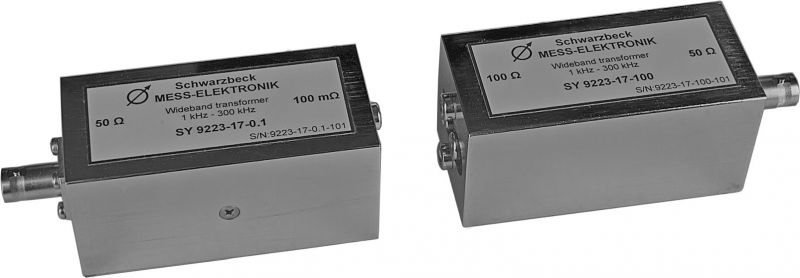

  • sy9223-17





SY 9223-17-100



Broadband transformer 1:1,4

or 50 Ohm : 100 Ohm

respectively acc. to CISPR 17 for filter measurements. 100 Ohm-side with banana jacks. 50 Ohm-side with BNC-jacks.



Datasheet SY 9223-17-100








  • sy9223-17



SY 9223-17-0.1



Broadband transformer 22:1

or 50 Ohm : 0.1 Ohm

respectively acc. to CISPR 17 for filter measurements. 50 Ohm-side with BNC-jacks, 0.1 Ohm-side with banana jacks.



Datasheet SY 9223-17-0.1

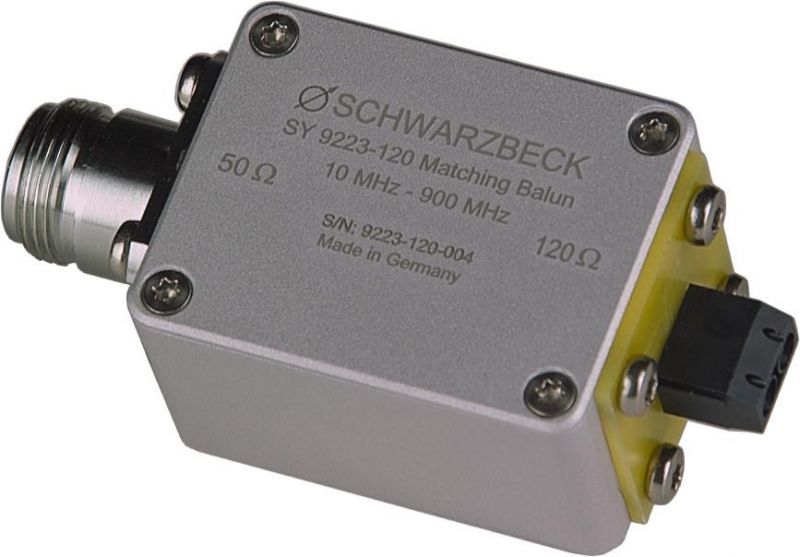

  • Schwarzbeck SY9223-120 Matching Balum


SY 9223-120



Balun for transmission measurements

acc. to IEC61643-21

50 Ohm N to 120 Ohm screw terminals



Datasheet SY 9223-120

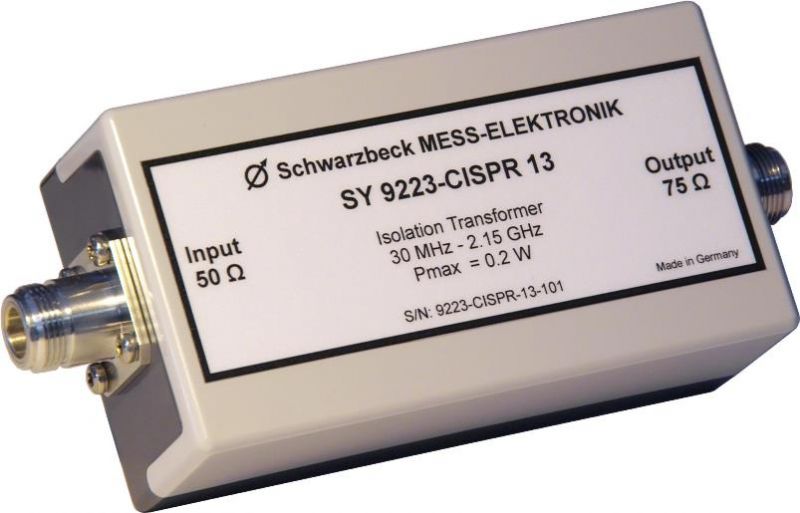

  • Schwarzbeck SY 9223-CISPR 13 Isolation Transformer



SY 9223-CISPR 13



Broad band isolation transformer

acc. CISPR 13 fig. A.2

50 Ohm 75 Ohm



Datasheet SY 9223-CISPR 13






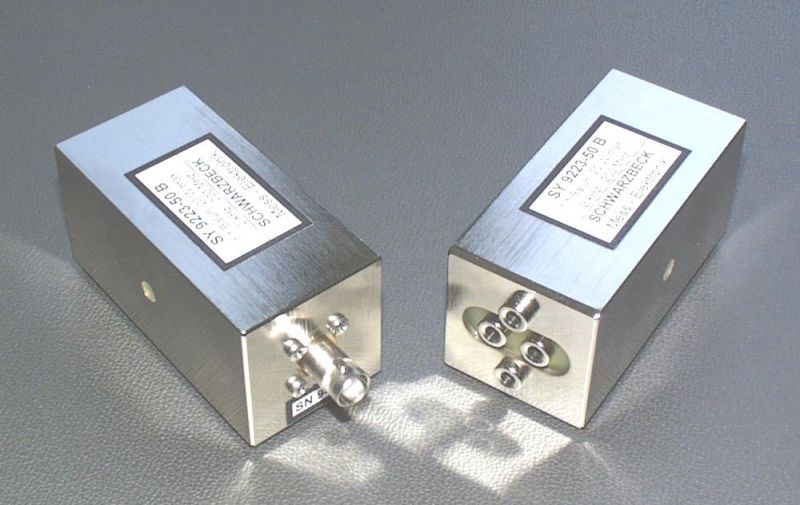

  • Schwarzbeck SY 9223-PLC



SY 9223-PLC



1:1 PLC balun

acc. to EN 50065-2-1 2003 + A1:2005 for Immunity against small band disturbance voltage

3 kHz - 30 MHz

BNC and banana jacks

Option 2 µF + 50 Ohm: 2 µF + 50 Ohm, in isolated housing, banana jacks



Datasheet SY 9223-PLC
