LISN according to MIL 461 MIL 462





NNBL 8225



V-LISN

(9) 150 kHz - 100 MHz

(50 µH + 5 Ω) || 50 Ω

20 A

50 Hz AC 250 V

400 Hz AC 140 V

single path

Mil. Std. 461/462



pdficon small Datasheet NNBL 8225

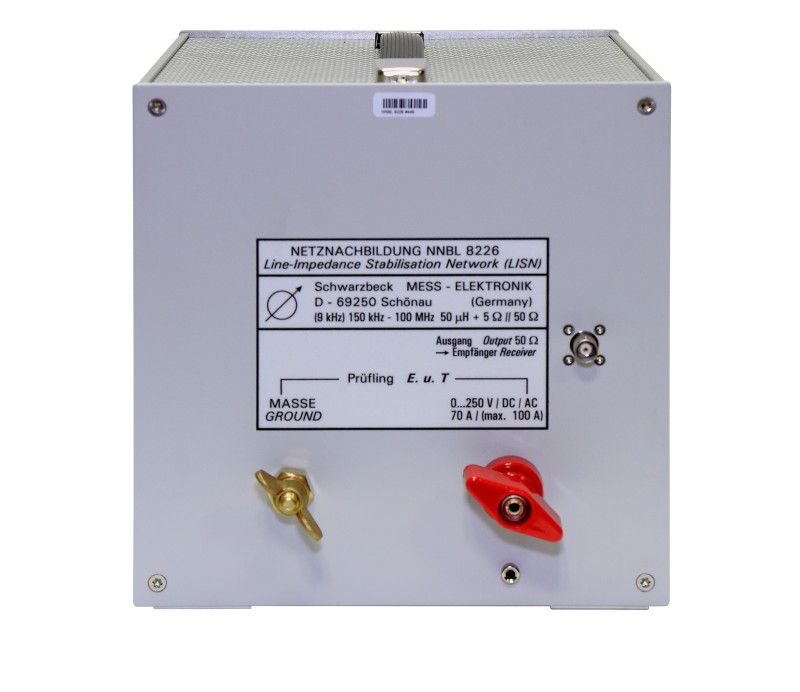

  • NNBL 8226

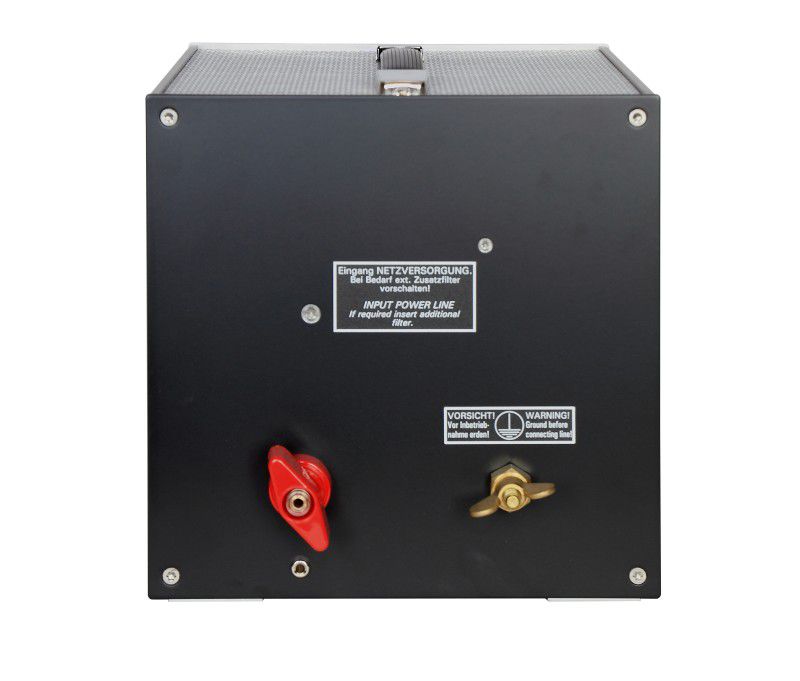

  • NNBL8226



NNBL 8226



V-LISN

(9) 150 kHz - 100 MHz

(50 µH + 5 Ω) || 50 Ω

70 (100) A

50 Hz AC 250 V

single path

Mil. Std. 461/462



pdficon small Datasheet NNBL 8226






NNBL 8226-HV



V-LISN

(9) 150 kHz - 100 MHz

(50 µH + 5Ω) || 50 Ω

70 (100) A

50 Hz AC 800 V

single path

Mil. Std 461/462



pdficon small Datasheet NNBL 8226-HV

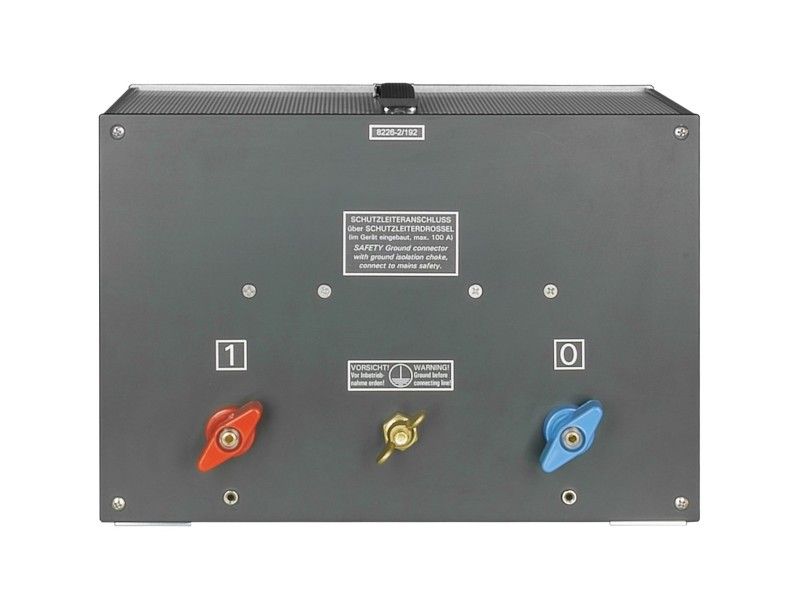

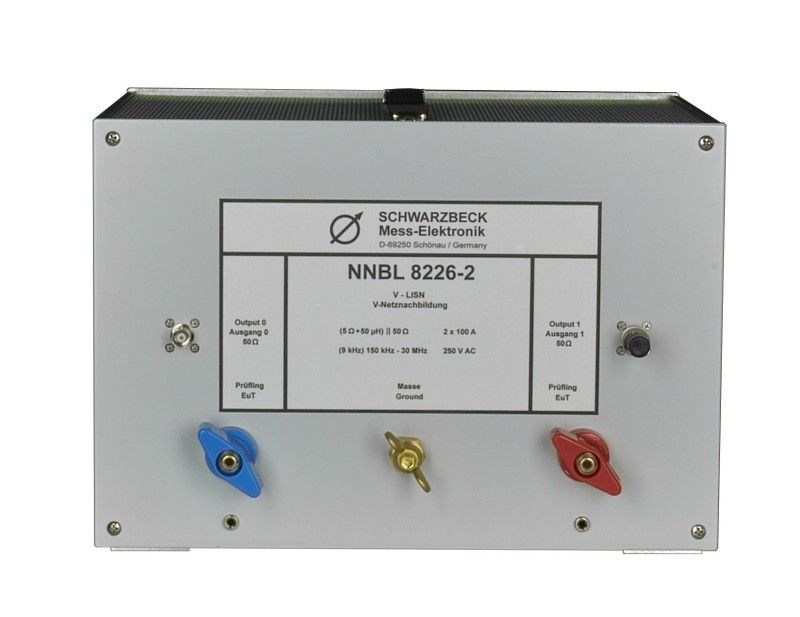

  • Schwarzbeck NNBL 8226-2
  • Schwarzbeck NNBL8226-2



NNBL 8226-2



V-LISN

(9) 150 kHz - 100 MHz

(50 µH + 5 Ω) || 50 Ω

70 (100) A

50 Hz AC 250 V

two path

Mil. Std. 461/462



pdficon small Datasheet NNBL 8226-2

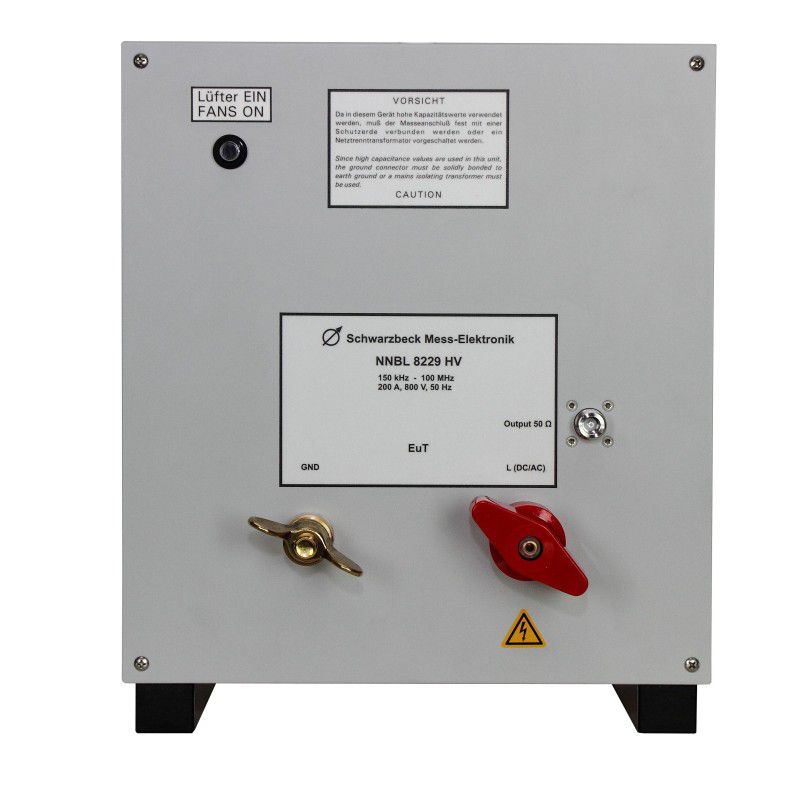

  • Schwarzbeck NNBL 8229 HV

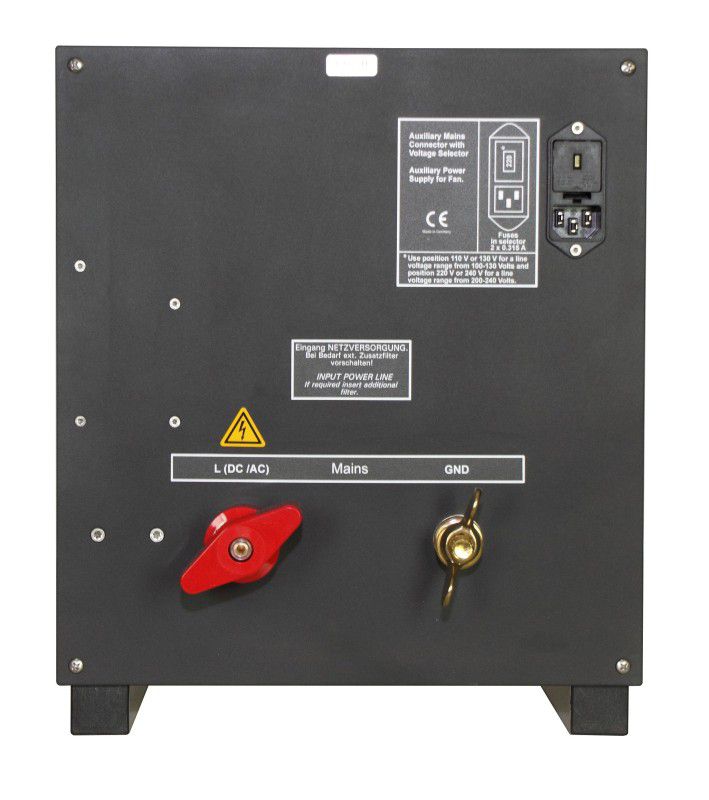

  • Schwarzbeck NNBL 8229HV



NNBL 8229-HV



 V-LISN

(9) 150 kHz - 100 MHz

(50 µH + 5 Ω) || 50Ω

200 A

50 Hz AC 800 V / DC 1000 V

single path

MIL STD 461 E



pdficon small Datasheet NNBL 8229-HV

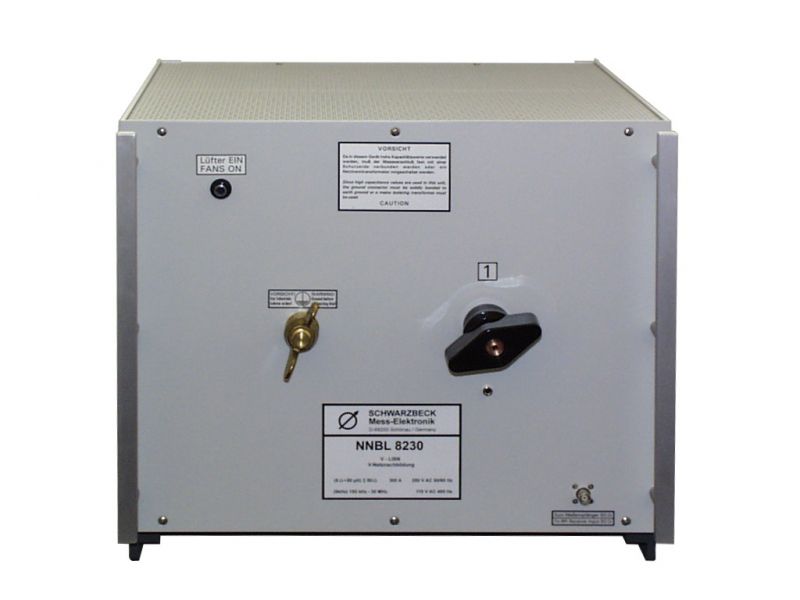

  • Schwarzbeck NNBL 8230



NNBL 8230



V-LISN

(9) 150 kHz - 100 MHz

(50 µH + 5Ω) || 50Ω

300 A

50 Hz AC 250 V

single path

Mil. Std. 461/462



pdficon small Datasheet NNBL 8230

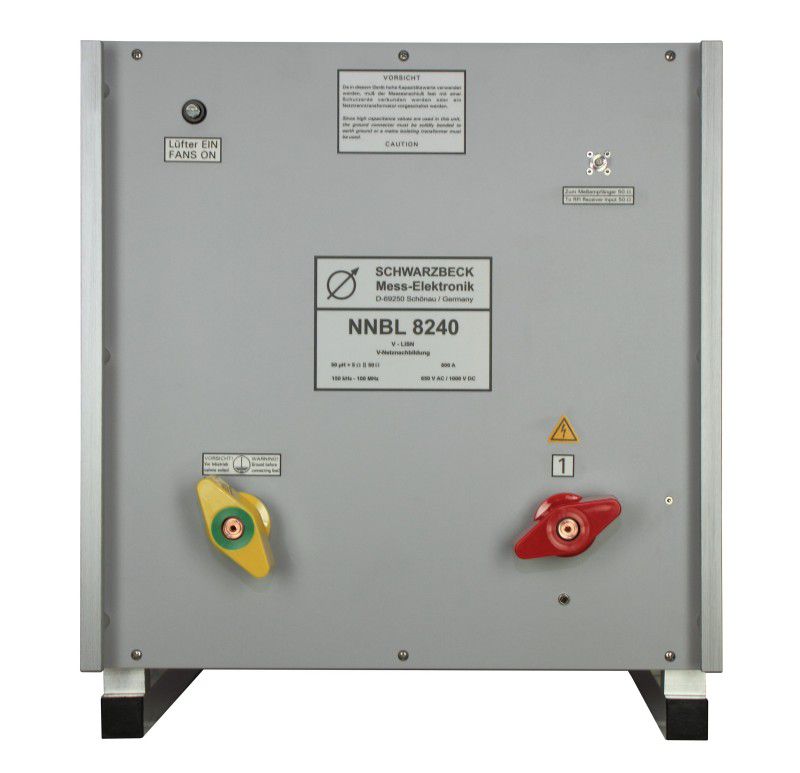

  • Schwarzbeck NNBL 8240 V-LISN

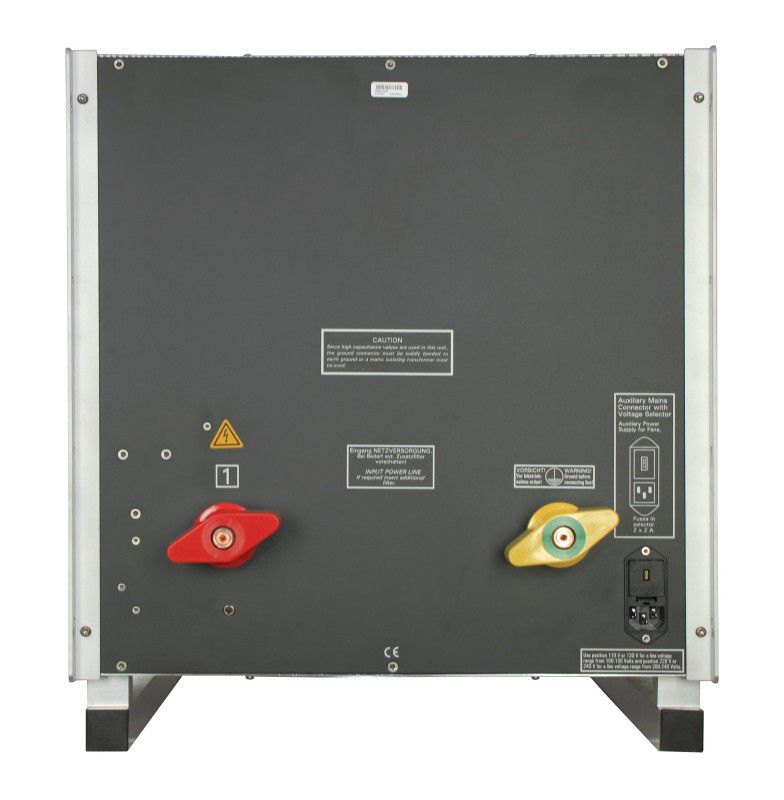

  • Schwarzbeck NNBL 8240 V-LISN_back



NNBL 8240



V-LISN

(9) 150 kHz - 100 MHz

(50 µH + 5Ω) || 50Ω

800 A (1000 A)

1000 VCD / 250 VAC (50/60 Hz)

single path

Mil. Std. 461E



pdficon small Datasheet NNBL 8240
