VULP 9118 D - Log Periodic Antenna



VULP 9118 D - Log Periodic Antenna

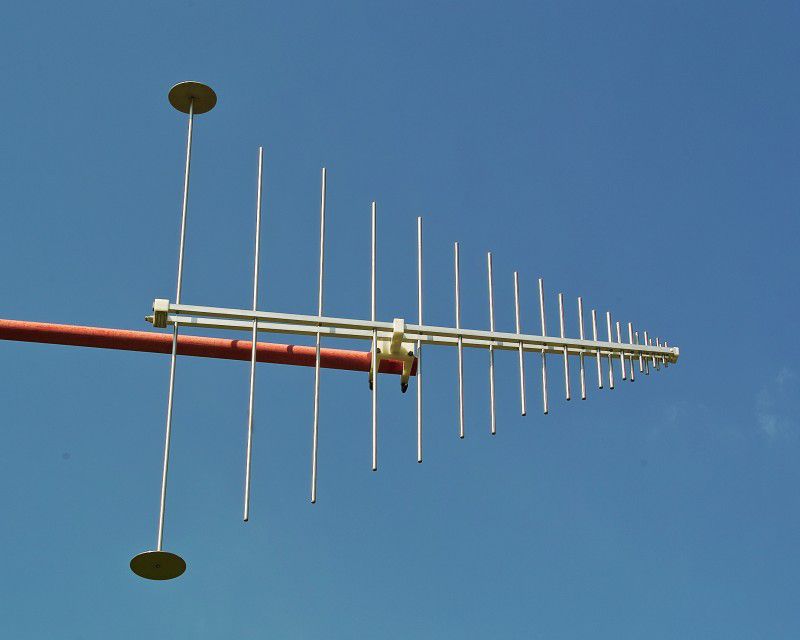

  • Schwarzbeck VULP 9118 D

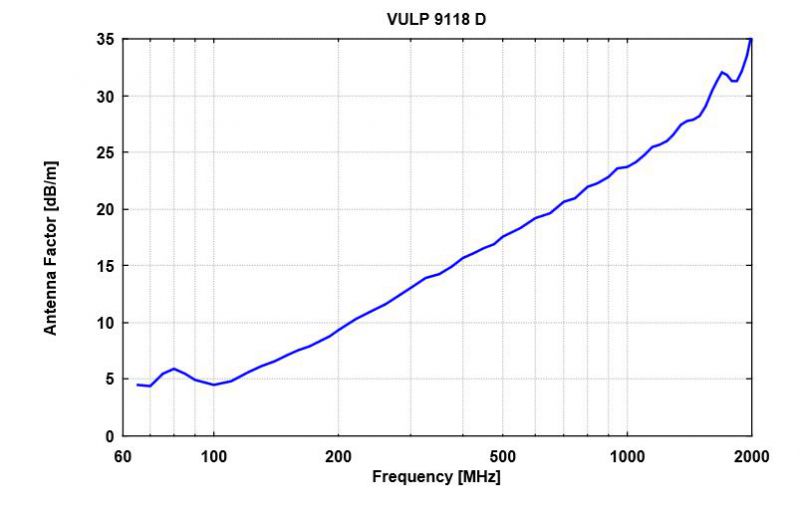

  • VULP 9118 D - Typical Antenna Factor

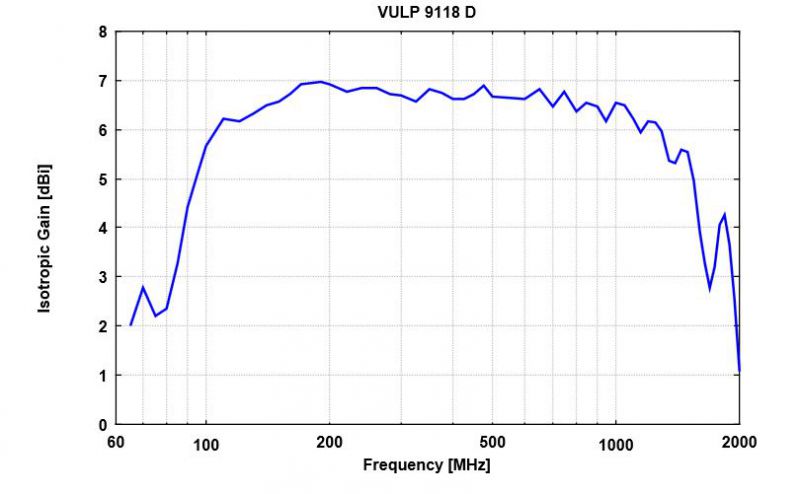

  • VULP 9118 D - Typical Antenna Gain
Frequency Range: (80) 95 - 1500 (1800) MHz
Polarisation: linear
Pattern Type: directional
Material: Aluminium
Max Power: 1 kW
Connector: Type N female
Impedance: 50 Ω nominal



Length: 1.59 m
Width: 1.65 m
Weight: 3.4 kg
Mounting: Center Mount
Recommended Adapter: KG 9201



Datasheet VULP 9118 D

Dimensions

pdficon small Short Measuring Distance

Radiation Pattern

VSWR

pdficon small Fieldstrength
