VULP 9118 B - Log Periodic Antenna

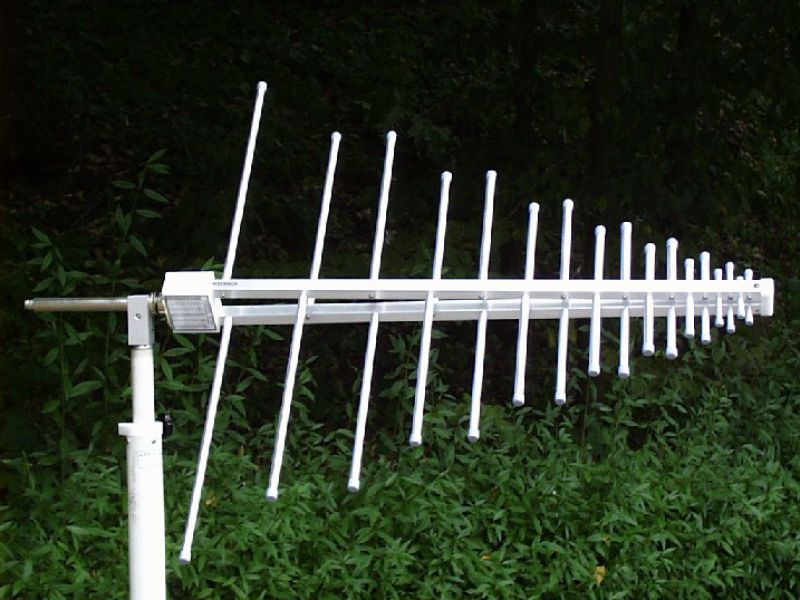

  • Schwarzbeck VULP9118B Log.-Periodic Antenna

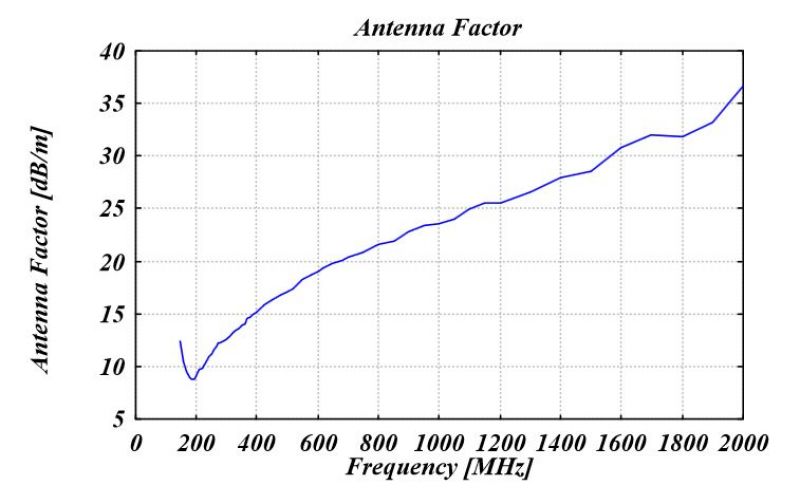

  • VULP 9118 B - Typical Antenna Factor

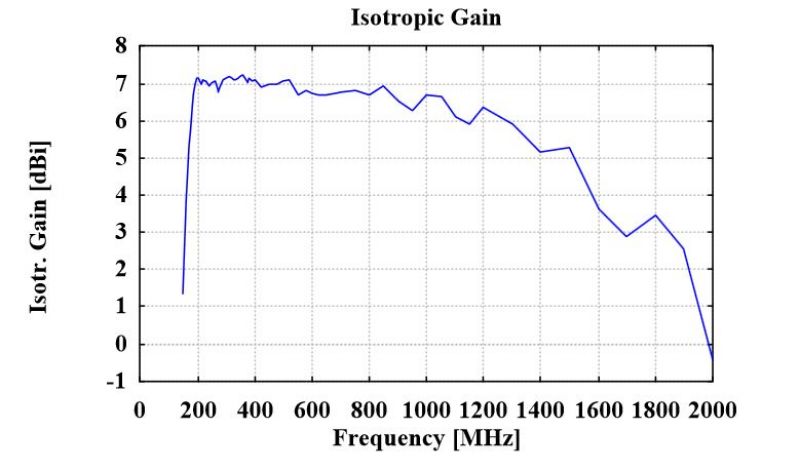

  • VULP 9118 B - Typical Gain



Frequency Range: 160 -1500 (2000) MHz
Polarisation: linear
Pattern Type: directional
Material: Aluminium
Max Power: 1 kW
Connector: Type N female
Impedance: 50 Ω nominal
Length: 1.09 m
Width: 0.89 m
Weight: 2.3 kg
Mounting: 22 mm diameter tube



Datasheet VULP 9118 B

Dimensions

Short Measuring Distance

VSWR

Fieldstrength
