NSLK 8117



NSLK 8117 - Line Impedance Stabilisation Network



 NEW

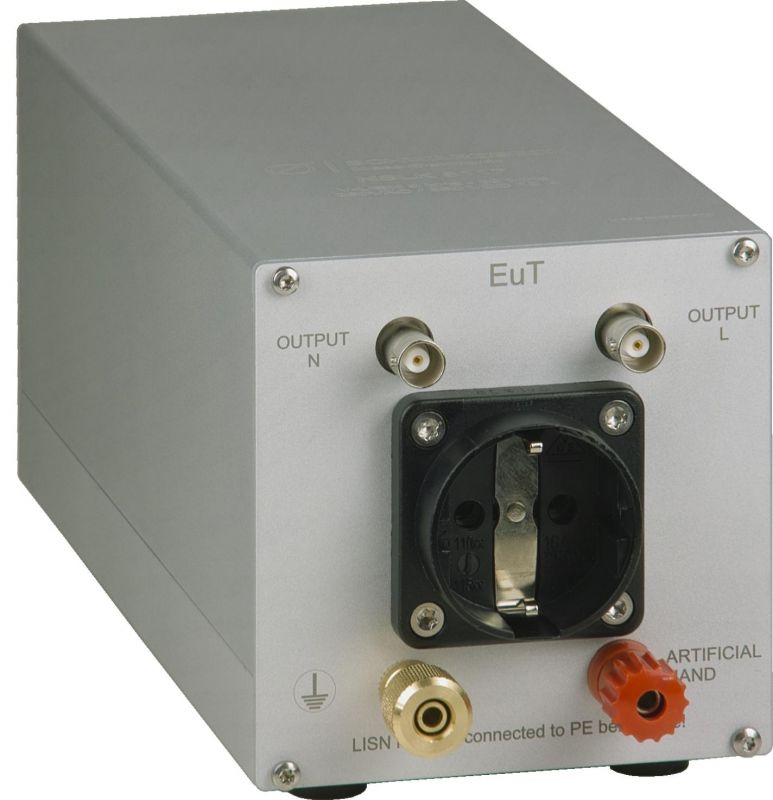

  • NSLK 8117 front

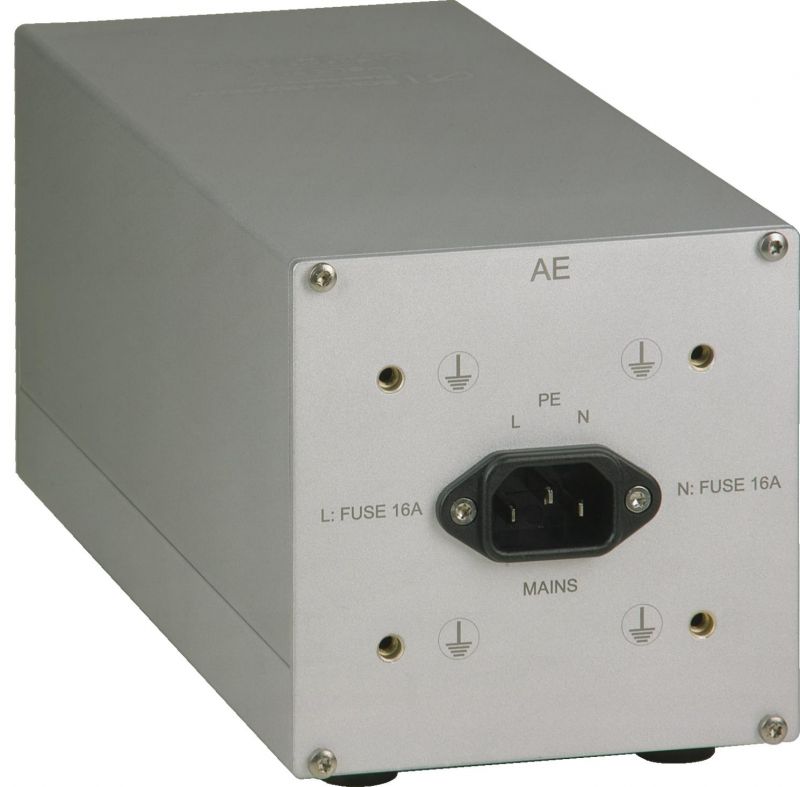

  • NSLK 8117 rear



Topology: V-LISN
Frequency Range: 9 kHz - 30 MHz
Pre-filter choke: 250 µH
Impedance simulation: 50 Ω || (50 µH + 5 Ω)
Max. Current:

2 x 10 A

Max. Voltage: 250 VAC 50/60 Hz
350 VDC
Supply cable: IEC Appliance Inlet C14
Connector for EuT:

CEE 7/4 Type F (Schuko) socket

Connector for „artificial hand“: 4 mm laboratory socket with screw terminal 6 mm, not removable
Connector to EMI receiver: BNC socket 50 Ω
Dimensions housing (WxHxD): 105 mm x 108 mm x 263 mm
Standard: CISPR 16-1-2



pdficon small Datasheet NSLK 8117
