NNLK 8140 - V-LISN

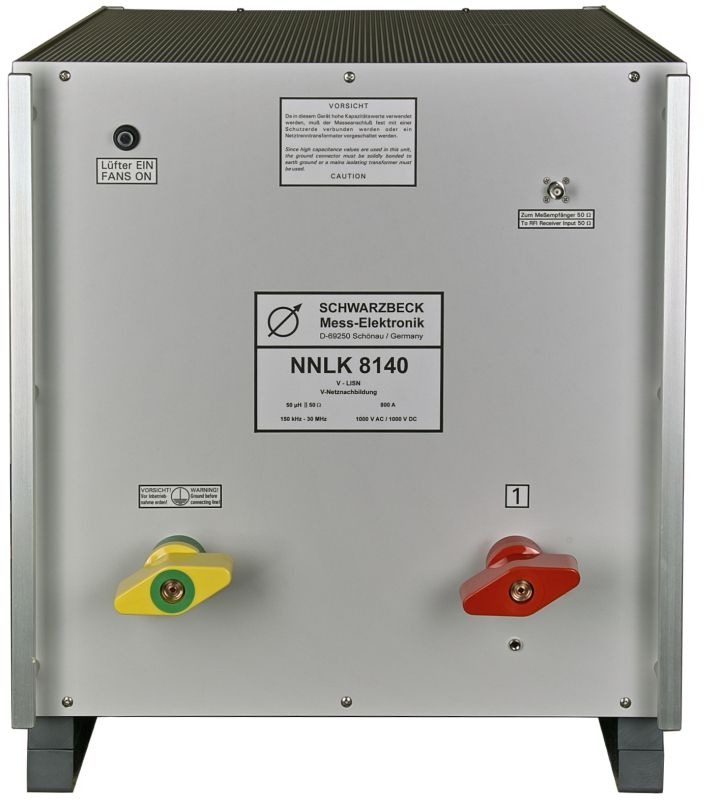

  • Schwarzbeck NNLK 8140 V-LISN

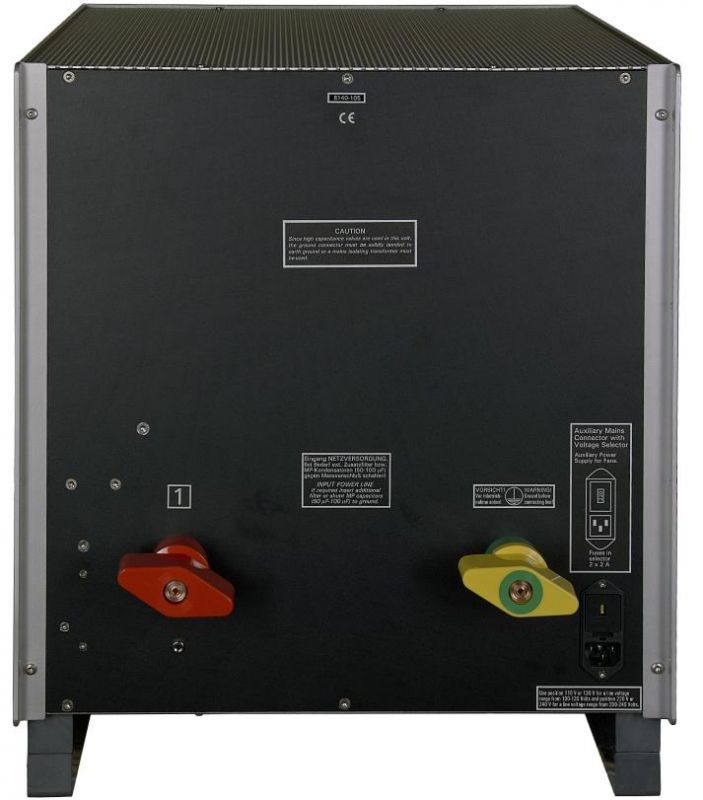

  • Schwarzbeck NNLK8140 V-LISN




Topology: Single path V-LISN
Frequency range: (9 kHz) 150 kHz - 30 MHz
Impedance: 50 µH || 50 Ω (+/- 20 %)
max. voltage (DC): 1000 VDC


max. voltage
(50/60 Hz AC) :

1000 VAC

max. voltage
(400 Hz AC):

500 VAC
max. const. current: 800 A
max. current (limited time): 1000 A
Mains connectiors: 2 wing terminals M16x1.5 removable
EuT connectors: 2 wing terminals M16x1.5 removable
Length: 770 mm
Width: 445 mm
Hight: 505 mm
Weight: 46 kg
Standard: CISPR 16-1-2



pdficon small Datasheet NNLK 8140



Opt. TC

The temperature monitor modul which is optional available for the NNLK LISN warns the user optical and acoustical when the temperature gets too high. It controls the fans of the LISN temperature-dependent, too and thus prevents overheating. If a critical temperature is reached the temperature control modul indicates this optically and acoustically.



pdficon small NNLK 8121 Opt. TC
