TEMP 8400 - Tempest LISN



TEMP 8400 - Tempest LISN

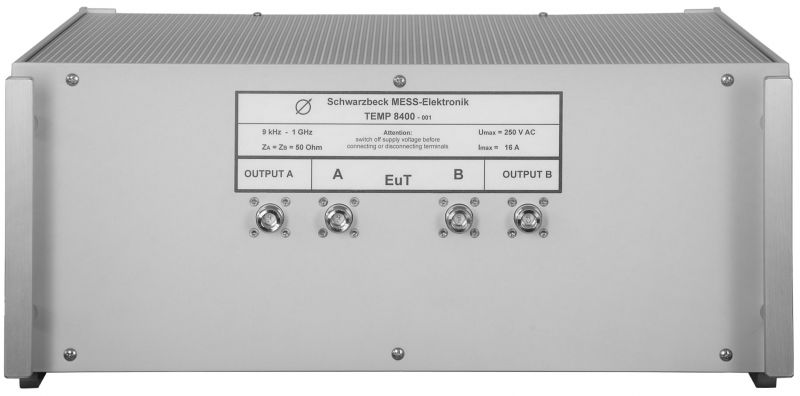

  • Schwarzbeck TEMP8400

The symmetrical AC-network TEMP 8400 consists of two identical channels for the lines "A" and "B".

It is constructed with air core inductors, in order to avoid intermodulation interference.

For the evaluation of interference phenomena the unsymmetrical interference voltage of a conductor to ground reference in the frequency range of 9 kHz to 1 GHz can be measured. Lower-frequency interference that may cause damage to the measuring receiver input shall be mitigated by additional high-pass filters.



Frequency Range: 9 kHz - 1 GHz
Max. cont. Current: 16 A
Max. Current (limited time, 3 min): 25 A
Max. Voltage (DC bis 400 Hz): 250 V AC
Impedance (50Hz): 1.4 Ω
AMN Impedance A or B: (50 +/- 10) Ω
Insertion loss (EUT - AE): Typ. 25 ... 60 dB
Voltage Division Factor at the measuring port (EUT - Monitor): (0 ... -3) dB
EUT Connector: N-female, via adapter convertible to wing terminals M7x0,75 not unscrewable

Dimensions (W x H x D):

448 x 191 x 470 mm
Weight: 11.5 kg



pdficon small Datasheet TEMP 8400



Accessories:

TEMP 8401 Adapter N-male to wing terminals for TEMP 8400
