BBHA 9120 G - Double Ridged Broadband Horn Antenna

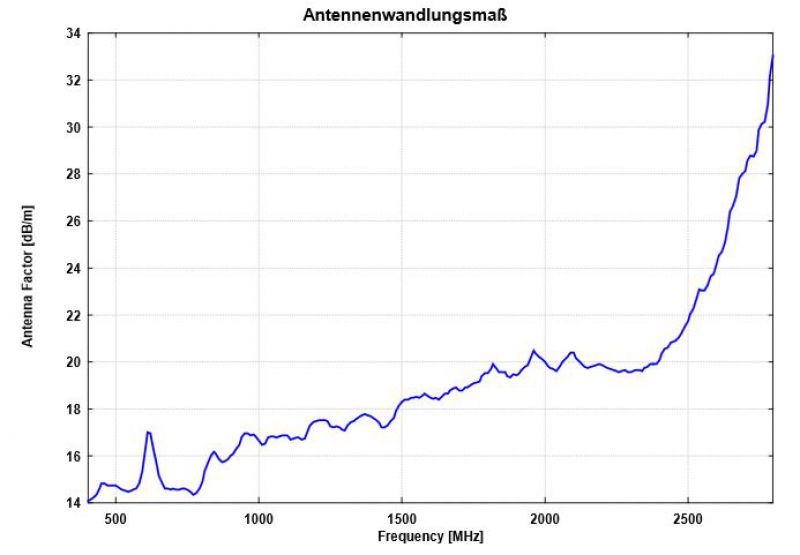

  • BBHA 9120 G - Typical Antenna Factor

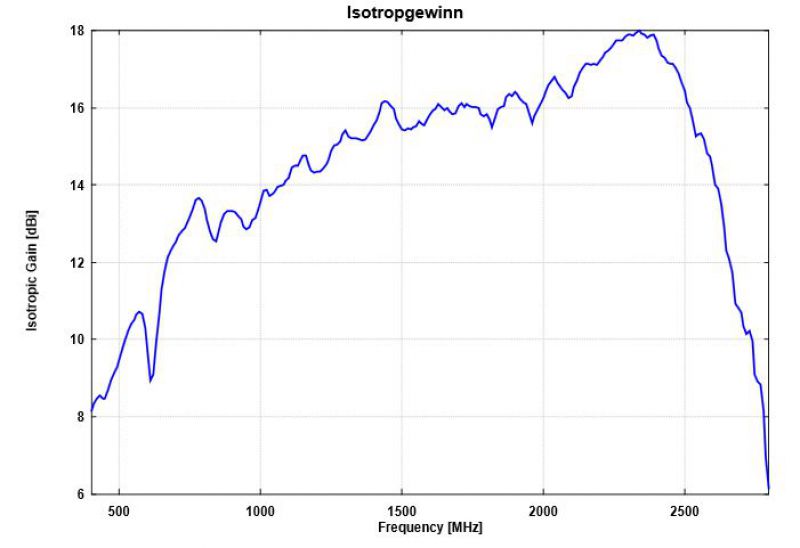

  • BBHA 9120 G - Typical Gain

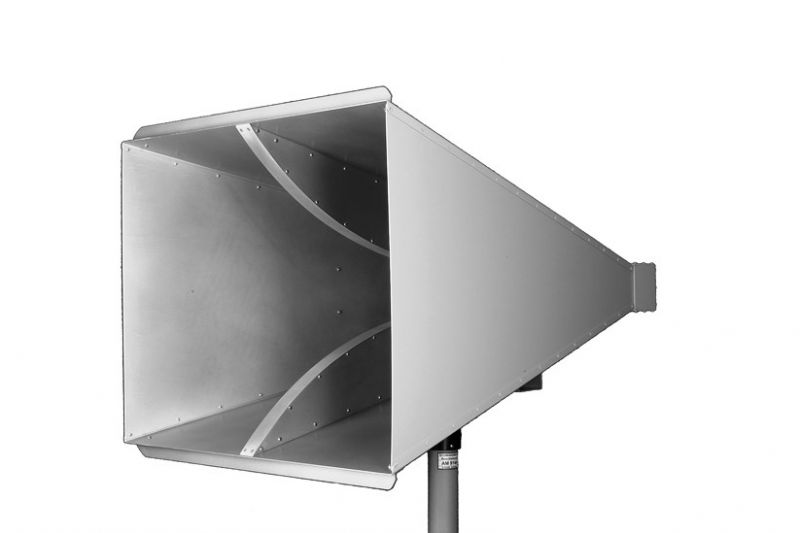

  • Schwarzbeck BBHA 9120 G Broadband Horn Antenna

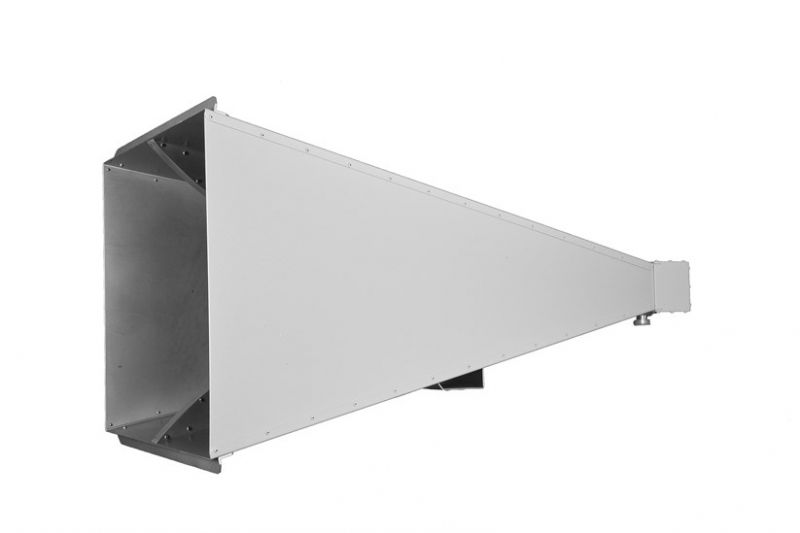

  • Schwarzbeck BBHA9120G Broadband Horn Antenna



The broadband horn antenna BBHA 9120 G is a linear polarized double ridged horn antenna for the frequency range 0.4 GHz to 2.8 GHz.





Frequency Range, nominal: 0.4 GHz - 2.8 GHz
Polarisation: linear
Pattern Type: directional
Material: Aluminium
Max Power:

see diagramm

Connector: 7/16 - female
Impedance: 50 Ω nominal
Length: 990 mm
Width: 550 mm
Height: 460 mm
Weight: 10 kg
Mounting: Center Mount M12 and 3/8"
Recommended Accessories: PDG 9211 - Polarisation Swivel Fixture



Datasheet BBHA 9120G



VSWR
