BBHA 9120 B - Double Ridged Broadband Horn Antenna

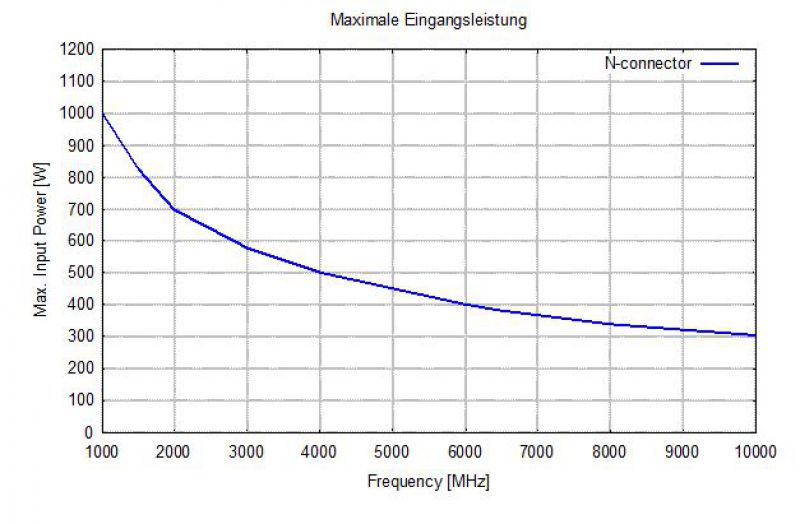

  • BBHA 9120 B - Max Input Power - N Connector

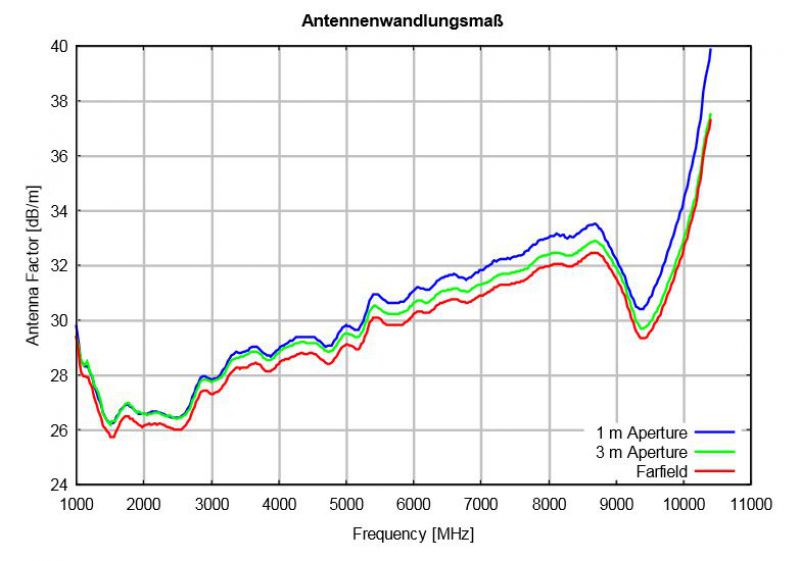

  • BBHA 9120 B - Typical Antenna Factor

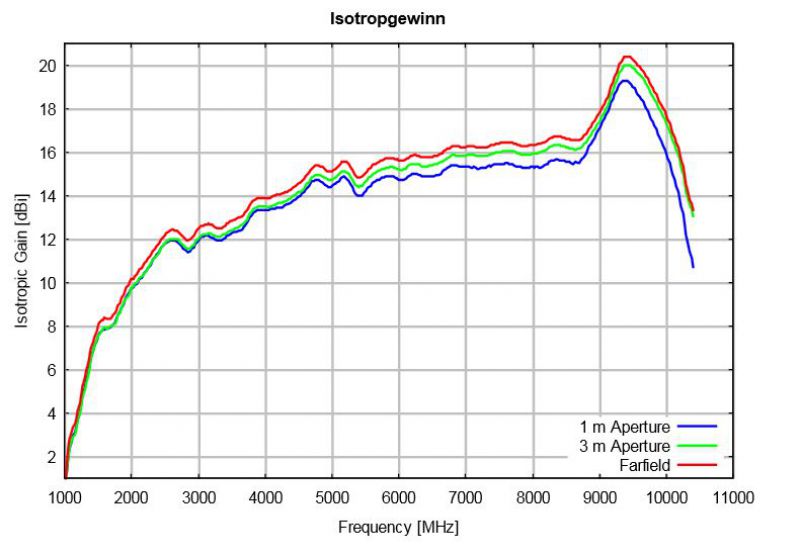

  • BBHA 9120 B - Typical Gain

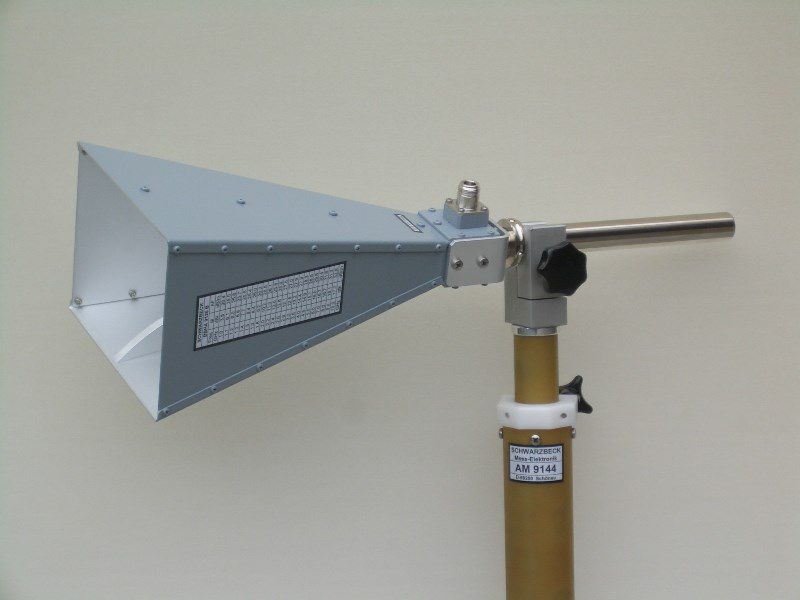

  • Schwarzbeck Broadband Horn Antenna BBHA9120B



The broadband horn antenna BBHA 9120 B is a linear polarized double ridged horn antenna for the frequency range 1 GHz to 10 (12) GHz.







Frequency Range, nominal: 1 GHz - 10 GHz
Usable Frequency Range: 1 GHz - 12 GHz
Polarisation: linear
Pattern Type: directional
Material: Aluminium
Max Power: see diagram
Connector: N
Impedance: 50 Ω nominal
Length: 272 (482) mm
Width: 182 mm
Height: 124 mm
Weight: 1.3 kg
Mounting: 22 mm Tube





Datasheet BBHA 9120B



Radiation Pattern
