VUSLP 9111 B - Log Periodic Antenna

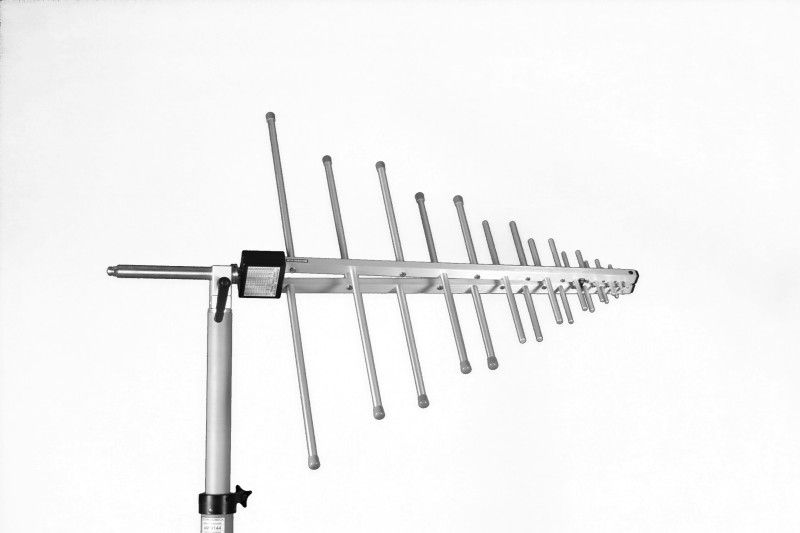

  • Schwarzbeck VUSLP 9111 B - Log Periodic Antenna

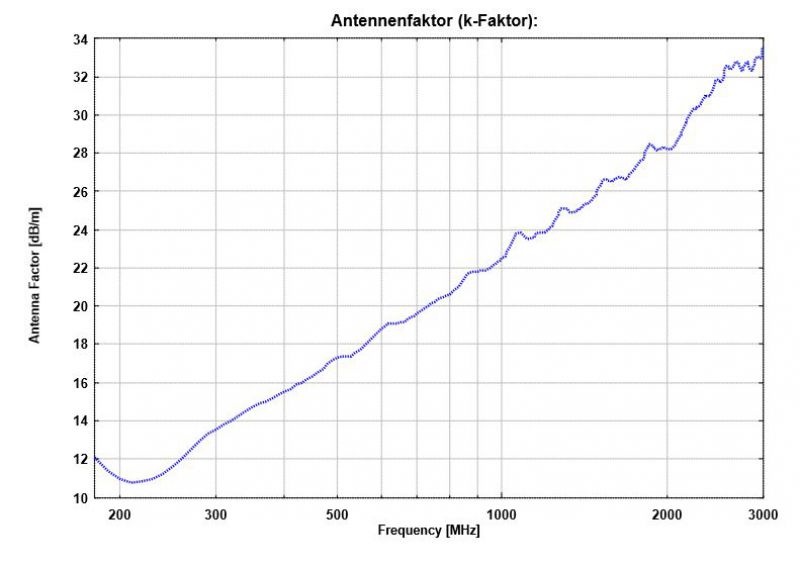

  • VULP 9111 B - Typical Antenna Factor

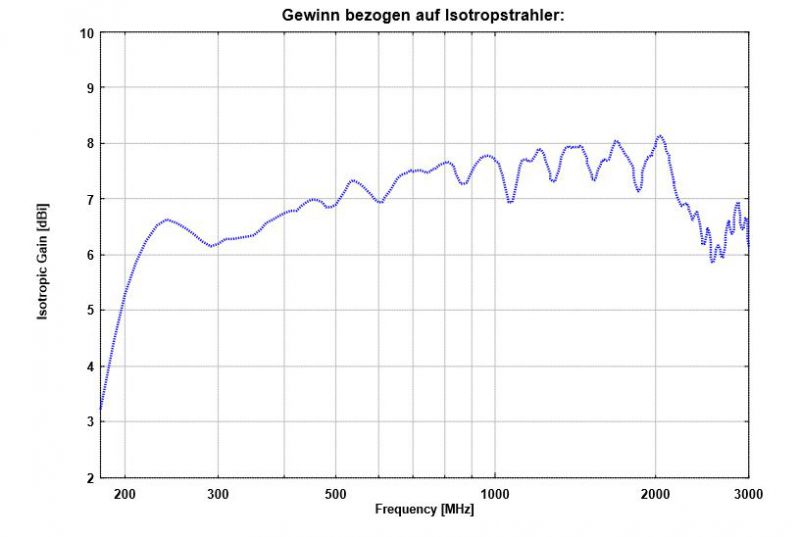

  • VULP 9111 B - Typical Antenna Gain
Frequency Range:

(180) 200 - 3000 (4000) MHz

Polarisation: linear
Pattern Type: directional
Material: Aluminium
Max Power: 1 kW (<300 MHz)
Connector: Type N female
Impedance: 50 Ω nominal



Length: 0.90 m
Width: 0.78 m
Height: 0.08 m
Weight: 1.7 kg



Datasheet VUSLP 9111B

Short Measuring Distance
