PCD 2440



PCD 2440



  • PCD2440

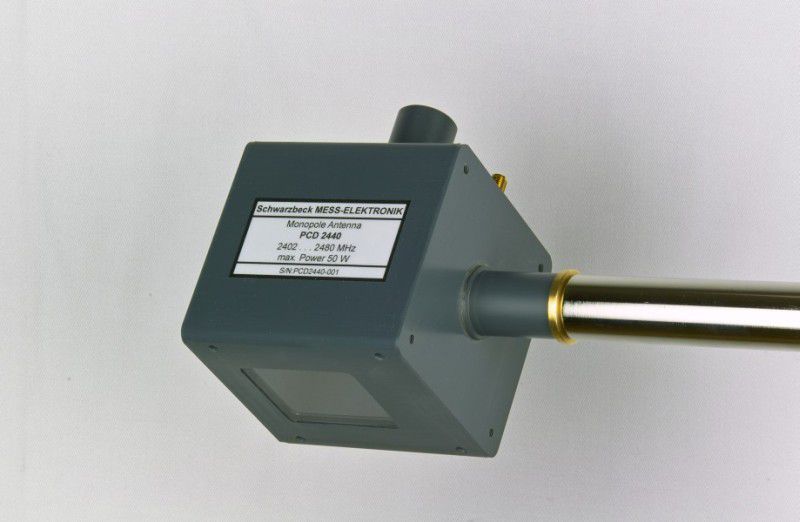

The antenna PCD 2440 is a monopole antenna located in a PVC-housing for automotive immunity testing on component level.



Frequency Range: 2402...2480 MHz
Polarisation: linear
Pattern Type: omnidirectional
Permissible Power: 50 W
Connector: Type SMA female
Impedance: 50 Ohms nominal
Length: 80 mm
Width: 80 mm
Hight: 85 mm
Weight: 310 g
Mounting:

22 mm diameter tube, L = 30 mm

3/8"


pdficon small Datasheet PCD 2440
