  • EGG900

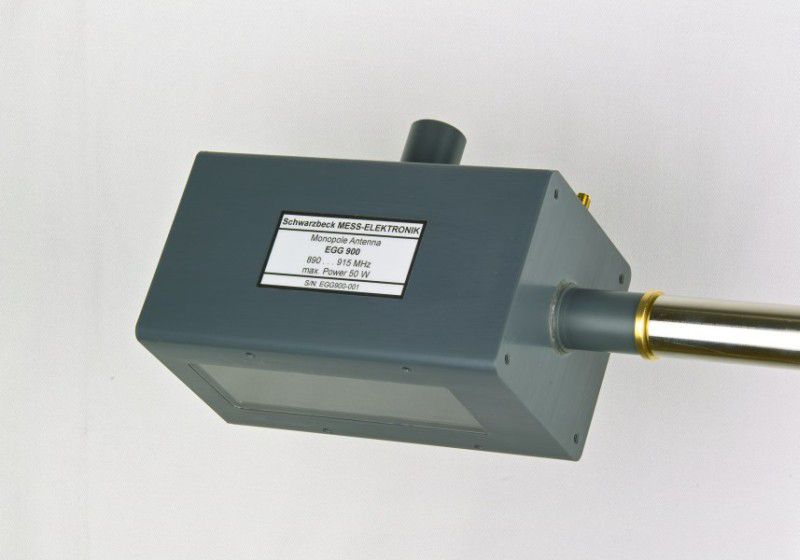

The antenna EGG 900 is a monopole antenna located in a PVC-housing for automotive immunity testing on component level. This antenna type is proposed in the standard ISO 11452-9.



The antenna construction stems from IETR Institute d'Electronique et de Telecommunications de Rennes.



Frequency Range: 890...915 MHz
Polarisation: linear
Pattern Type: omnidirectional
Permissible Power: 50 W
Connector: Type SMA female
Impedance: 50 Ohms nominal
Length: 80 mm
Width: 80 mm
Hight: 150 mm
Weight: 300 g
Mounting:

22 mm diameter tube, L = 30 mm

3/8"
