FESP 5134-1 - Field Monitoring Loop



FESP 5134-1 - Magnetische Feldsensorspule

NEW

  • FESP5134-1

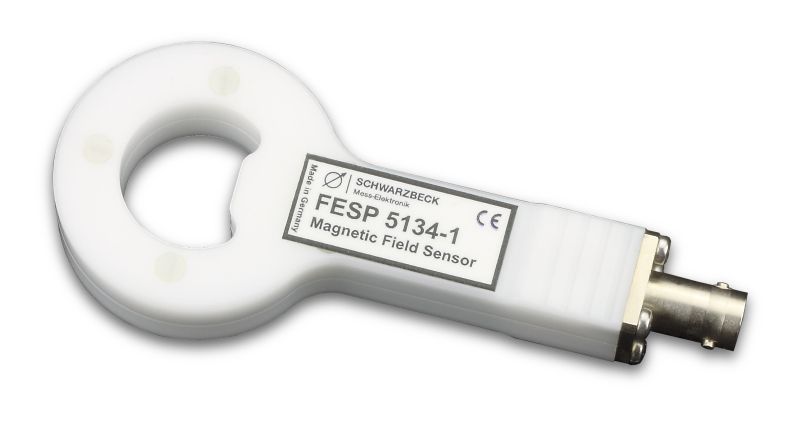

The magnetic, handheld field sensor coil FESP 5134-1 was designed to determine the magnetic fieldstrength during immunity tests. The loop sensor consists of a single shielded turn and can be used up to 400 MHz.

The FESP 5134-1 is intended to be used with 50 Ω measuring equipment, e.g. spectrum analyzers or measuring receivers. Thanks to the shielded turn the loop sensor achieves high symmetry and good E-field rejection.

Typical appli-cations are immunity tests acc. IEC 61000-4-39, several automotive standards, the measurement of human exposure limits acc. to ICNIRP, IEEE C.95-2005, 26.BImSchV and many others.




Number of Turns: 1
Coil Diameter: 40 mm
Usable Frequency Range: 10 kHz - 400 MHz
Nominal Frequency Range: 100 kHz - 300 MHz
Inductance: ca. 125 nH

Weight:

ca 70 g

Dimensions:

46 x 18 x 95 mm

Connector:

BNC
