NNLK 8129-2 HV



NNLK 8129-2 HV - Line Impedance Stabilisation Network

 NEW

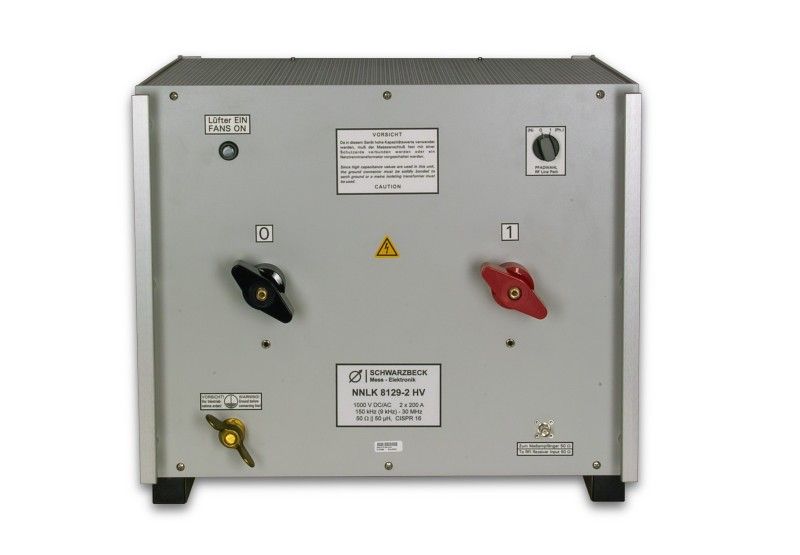

  • NNLK 8129-2 HV

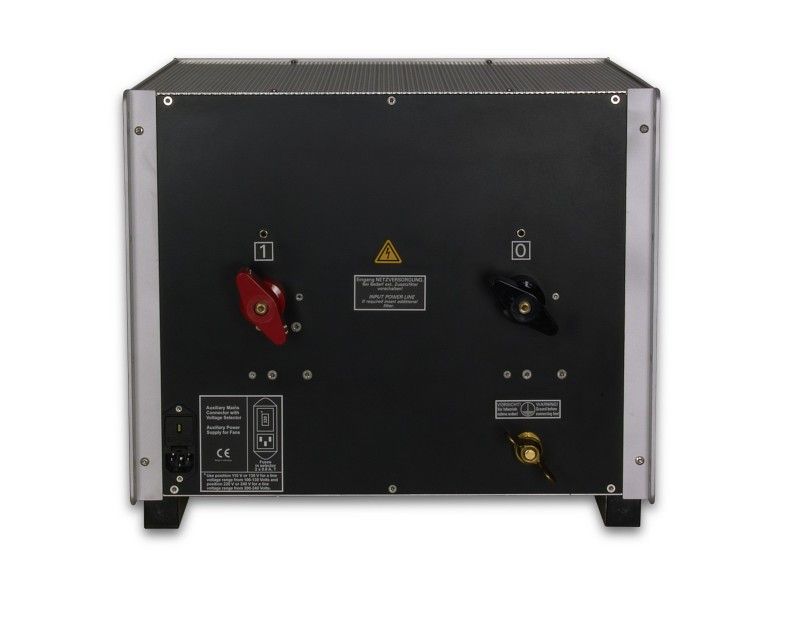

  • NNLK 8129-2 HV_R




Topology: V-LISN
Frequency Range: (9 kHz) 150 kHz - 30 MHz
Impedance simulation: 50 µH || 50 Ω
Max. Voltage:

1000 VAC 50/60 Hz
1000 VDC

   Max. Current:  2 x 200 (300) A
Mains terminals: Wing terminals 12 mm, removable
Terminals for E.u.T.: Wing terminals 12 mm, removable
Length: 520 mm
Width: 445 mm
Height: 385 mm

Weight:

~22 kg
Standard: CISPR 16-1-2



pdficon small Datasheet NNLK 8129-2 HV





Optionen:

Opt. RC

Option RC for LISN: Remote Control with built in power supply. LISN can be controlled by R&S or Schwarzbeck code, including remote control cable for your receiver type (Please specify your receiver type!). LISN can be selected from the R&S receiver menu or in the EMC32 software like an R&S LISN. No programming of the user interface necessary. Functions: path selection and PE grounded or via choke.



pdficon small NNLK 8129-2 HV Opt. RC



Opt. TC

The temperature monitor modul which is optional available for the NNLK LISN warns the user optical and acoustical when the temperature gets too high. It controls the fans of the LISN temperature-dependent, too and thus prevents overheating. If a critical temperature is reached the temperature control modul indicates this optically and acoustically.



pdficon small NNLK 8129-2 HV Opt. TC
