  • Schwarzbeck SPLIT 100 - Symmetrical splitter

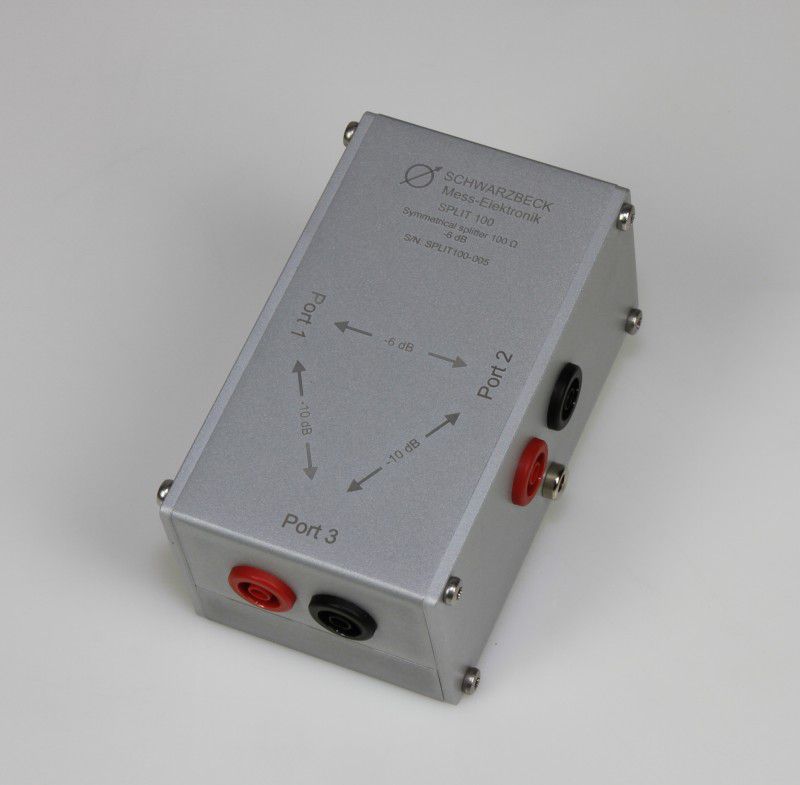

SPLIT 100 is a resistive, symmetrical two port splitter with an impedance of 100 Ω.



It is part of the measurement setup according to EN 50561-1:2012 which is explained in chapter 9.2. Figure 4 shows the measurement setup.



Frequency range:

DC ... 30 MHz

Usable frequency range:

DC ... >50 MHz

Insertion loss:

6 dB ± 0.2 dB

Frequency response:

> +/-0.5 dB

Nominal Impedance:

100 Ω

Max. Input power:

1 W

Proof voltage against housing:

>500 VDC

Terminals:

4 mm safety laboratory jack

Length:

125 mm

Width:

104 mm

Hight:

50 mm

Weight:

ca. 270 g


pdficon small Datenblatt SPLIT 100



pdficon small Overview PLC Measurement-System EN 50561-1
