422 NJ



422 NJ

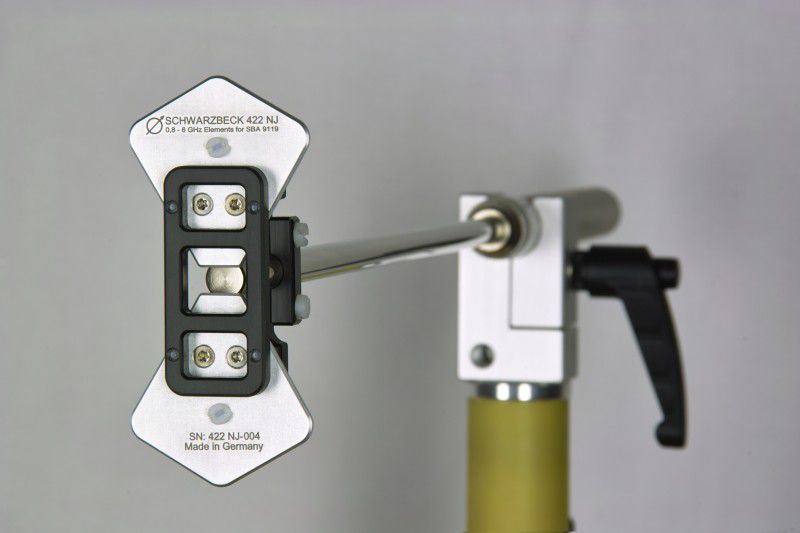

  • Schwarzbeck 422NJ

The combination of  the flat elements 422 NJ with SBA 9119-Balun provides remarkable fieldstrength levels with moderate transmit power. With approx. 10 Watt transmit power one can reach fieldstrength levels of 300 V/m at a distance of 30 mm.



Required Balun:

SBA 9119

Connector:

N

Frequency Range:

800 MHz ... 6 GHz

Nominal Impedance:

50

Continuous Power:

20 W

VSWR:

< 8 (0.9 GHz < f < 2.4 GHz)
< 4 (2.4 GHz < f < 6 GHz)

   Material: Aluminium
   Flat Element Dimensions:

108 x 49 x 2 mm

Weight: 50 g

Recommended Spacing:

30 mm
Recommended mesh width: 30 - 50 mm
Options: Spacer 30 mm
Other Spacer on request



pdficon small Datasheet 422 NJ

pdficon small Field Uniformity 422 NJ

Datasheet SBA 9119

pdficon small Assembly 422 NJ
