Standard Gain Antennas

The Gain Standard Antenna consists of a square-shaped reflector with dimensions l x l. Two half-wave dipoles are mounted l/4 in front of the reflector plate. The gain is 9.8 dBi at the antenna design frequency. The design frequency may be specified from 430 MHz to 2.8 GHz. The half power beamwidth is approx. 60 °. The standard gain antenna is used for applications which require a high gain with good directivity and good front to back ratio.

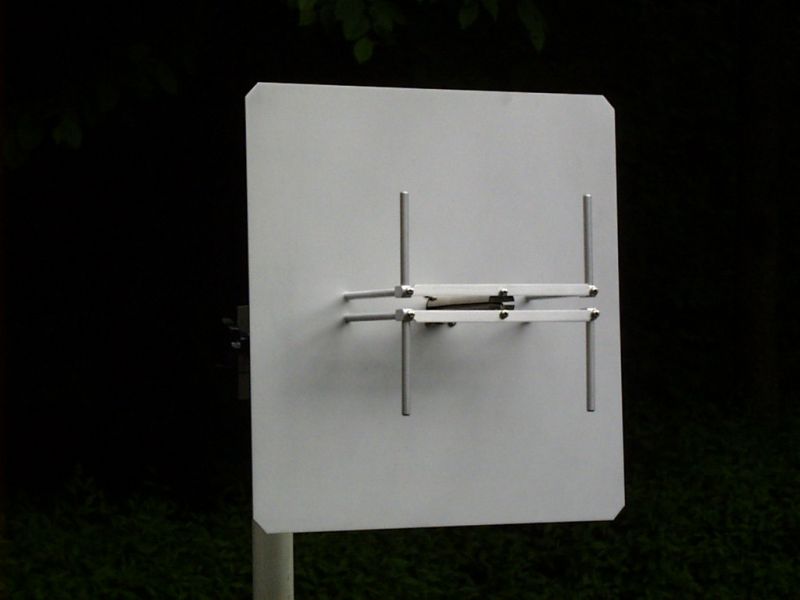

  • Schwarzbeck SGA900 Standard Gain Antenna

SGA 900



Standard Gain Antennas

2 half-wave dipoles in front of a lambda x lambda reflector

typ. 9.8 dBi gain

60° pattern

accurately calibrated





pdficon small Datasheet SGA900

pdficon small Radiation Pattern






SGA 1800



Standard Gain Antennas

2 half-wave dipoles in front of a lambda x lambda reflector

typ. 9.8 dBi gain

60° pattern

accurately calibrated



pdficon small Datasheet SGA1800

pdficon small Radiation Pattern

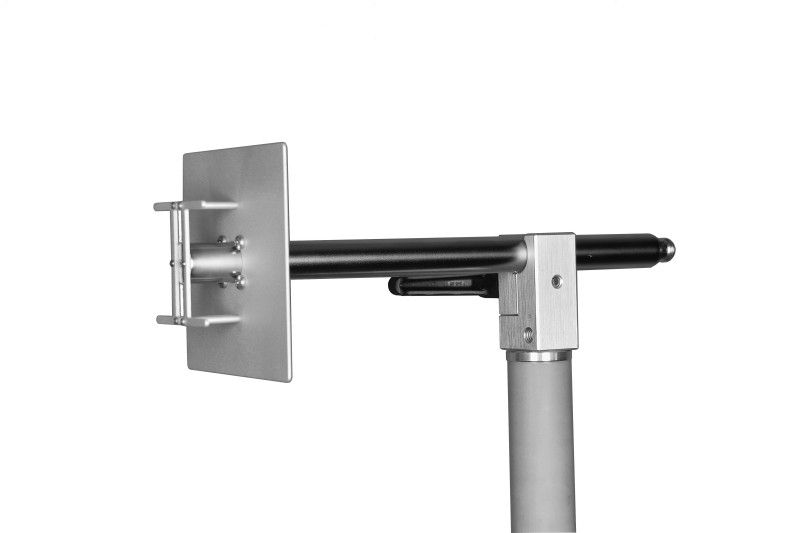

  • Schwarzbeck SGA-2450_1

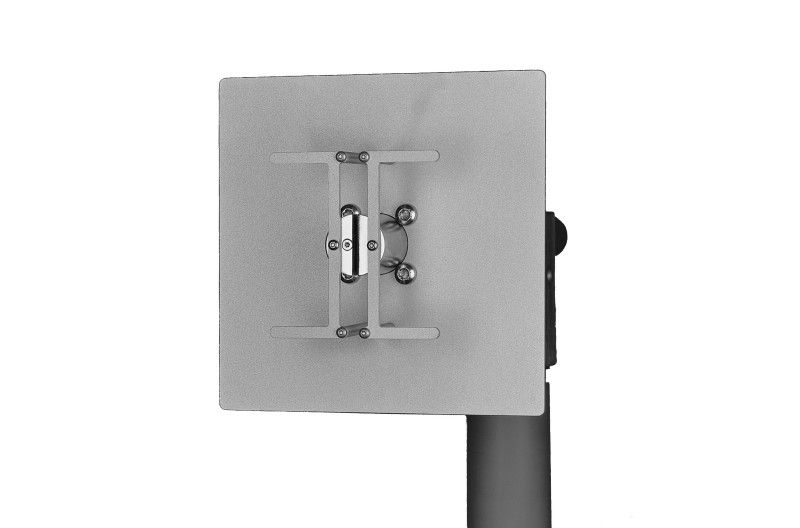

  • Schwarzbeck SGA2450



SGA 2450



Standard Gain Antennas

2 half-wave dipoles in front of a lambda x lambda reflector

typ. 9.8 dBi gain

60° pattern

accurately calibrated



pdficon small Datasheet SGA2450
